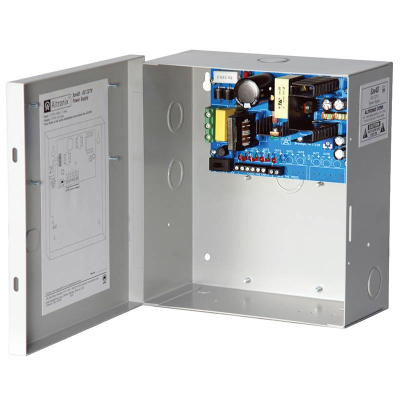

Altronix SAV CCTV Power Supply, 4 PTC Class 2 Outputs, 12VDC@5A, 115VAC

SKU:
SAV4D
Part #:
Model:
ALT100SAV4D
Was: $203.13
Now: $152.36

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

Altronix Sav4D Power Supply provides 12 VDC distributed via four (4) class 2 rated PTC protected power limited outputs for powering surveillance cameras. Four (4) Class 2 rated PTC protected power limited auto-resettable outputs. Filtered and electronically regulated outputs. Short circuit and thermal overload protection. Four (4) power LEDs. Field installable 3-wire line cord with integral strain relief. Unit maintains camera synchronization.

Warranty Information

Limited Lifetime

Specifications

  • Battery
    Not Included
  • Color
    Gray
  • Country of Origin
    USA
  • Depth
    3.5"
  • Device Type
    CCTV Power Supply
  • Electric Options
    4 Outputs
  • Height
    8.5"
  • Includes
    (3) Wire Line Cord
  • Input Current
    1.5 A/0.75 A
  • Material
    Steel
  • Operating Temperature
    32-120 deg F (0-49 deg C) with Relative Humidity 85 +/- 5 percent
  • Operating Voltage
    115/230 VAC Input; 12 VDC Output
  • Output Current
    5 A
  • Size
    1/2" x 3/4" Knockout
  • Standards
    cUL, RoHS, UL2044, CSA Standard C22.2 No.1-04
  • Unit of Measure
    Each
  • Weight
    4.6
  • Width
    7.5"
