Altronix PT724A Timer, 365 Day 24 Hour Annual Event, 1 Channel, LCD Display, Battery Charger (Board Only)

SKU:
PT724A
Part #:
Model:
ALT100PT724A
Was: $165.74
Now: $124.31

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

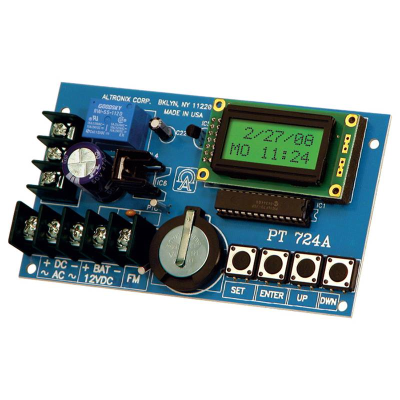

Altronix PT724A is an extremely versatile 24 hours 365 day event timer designed to support a wide range of applications: home and building automation, security, access control, lighting control, etc. The PT724A is equipped with an independently controlled form "C" relay contact that provides many latching and/or momentary operations during a program schedule of your choice. Events may be set for single or multiple operations on a daily and/or weekly schedule. Form "C" relay contacts are rated 10A @120VAC/28VDC. Standby current: 10 mA (relay off) 50 mA (relay on). EE PROM memory protects against loss of programming due to power failure. Accurate crystal controlled clock. Up to 50 individually programmed daily/weekly events. Block programming capacity can accommodate a total of 350 events per week. 10 programmable holiday dates. "First man in" option. Standard or daylight savings time settings. Automatic compensation for leap year. Built-in charger for 12VDC sealed lead acid or gel type batteries(Max charge current 100mA), not included, and lithium battery backup, not included, maintains clock.

Specifications

  • Application
    Home and Building Automation, Security, Access Control, Lighting Control, etc.
  • Battery
    Not Included
  • Country of Origin
    USA
  • Depth
    1"
  • Device Type
    Event Timer
  • Height
    5.25"
  • Material
    Phenolic/Fiberglass
  • Operating Temperature
    -4-120 deg F (-20-49 deg C) with Relative Humidity 85 +/- 5 percent
  • Operating Voltage
    12-24 VAC Input; 12-24 VDC Output
  • Output Current
    10 A / 50 A
  • Unit of Measure
    Each
  • Weight
    0.5
  • Width
    3"
