Alarm Lock Trilogy DL1200 Narrow Stile Exit Device Trim, 100 Users

Part #:
Model:: ALA100DL1200ET10B

$569.36 - $604.71

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review

Reset Selections

This item is not eligible for return

Quantity

Adding to cart… The item has been added

Product Overview

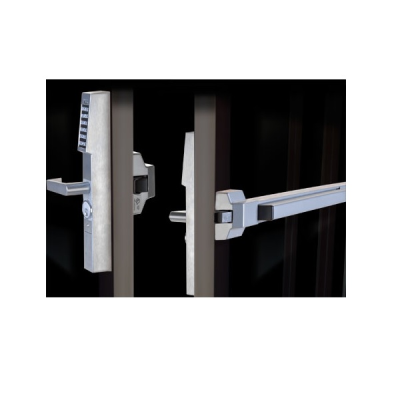

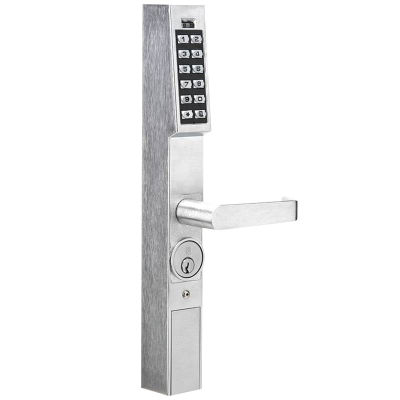

Alarm Lock's Trilogy narrow stile exit device trim locks for aluminum door retrofits. Adds vandal-resistant keyless access to panic exit doors. Protects storefronts and managed properties 24/7. Up to 2000 users supported with 3-5 digit access codes and multilevel user hierarchy. Designed with all-metal, vandal-resistant 12-button keypads. Easily installs on most aluminum glass doors. Works with Marks USA M8800, Von Duprin (Von 33 LH (RHR) only), Arrow, DCI and Corbin panic devices.

Resources

Specifications

Action

Electronic Keyless Access
Battery

2 lithium 3V batteries
Depth

1-5/8"
Device Type

Narrow
Door Material

Aluminum or Glass
Grade

Grade 1
Hand

Field Reversible
Handle Type

Lever
Height

14-3/8"
Keypad Type

12 Button Programmable
Keys

All metal
Lights

LED
Material

Brass/Bronze Base
Number of Users

100
Operating Temperature

-31-151 deg F (-35-66 deg C)
Power

Battery
Programmer/
Programming

Not Included
Reader Technology

Keypad Only
Standards

UL Listed, CE
Stiles

1-3/4" Thick
Type

Exit Device Trim
Unit of Measure

Each
Use With

Marks USA M8800, .Von Duprin (Von 33 LH (RHR) only), Arrow, DCI and Corbin panic devices
Weight

6.5
Width

1-3/4"
