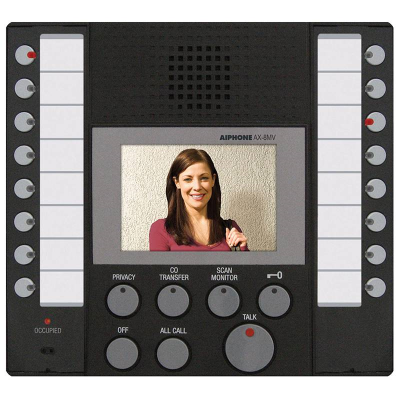

Aiphone AX-8MV Audio/Video Master Station, Black

SKU:
AX-8MV
Model:
AIP100AX8MV
Was: $1,328.00
Now: $996.00

In Stock

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

The AX-8MV Master Station is the centerpiece of the AX Integrated Audio/Video Security system. Each AX-8MV master station can initiate and answer calls from up to 7 additional master stations and up to 8 door or sub stations. When a video door station calls, a tremolo tone rings and the 3.5" color monitor comes on, displaying the image from the door station location. To answer the call, simply press the "TALK" button once and speak hands-free, or Press and Hold the TALK button to use as push-to-talk, release-to�listen. If access control is included, simply press the "key" button and the associated electric strike or magnetic lock will be activated. Each master station connects via CA T-5e cable homerun to the AX Central Exchange Unit. Feature and operation variables are set with the system set�up software and uploaded to the CEU. 3.5" TFT color video monitor. 8 Master station channels. 8 Door/sub station channels. LED and call tone annunciation for programmable length or infinite call-in. Hands-free VOX communication or Push-to-Talk. All call to other master stations. Selective calling to any station in the system. Add-on selectors in increments of 16 channels for max. capacity of 120 door/sub stations.

Specifications

  • Color
    Black
  • Communication
    Open voice hands-free (VOX or Push-to-Talk)
  • Configuration/Connectors
    RJ45 Jack for easy CAT-5e Connection
  • Country of Origin
    Japan
  • Includes
    3-1/2" color LCD screen
  • Lights
    LED
  • Material
    ABS Resin
  • Mounting Location
    Wall
  • Mounting Style
    Surface
  • Operating Temperature
    32-104 deg F (0-40 deg C)
  • Operating Voltage
    24 VDC
  • Size
    7-5/8" Width x 2-9/16" Depth x 6-7/8" Height
  • Type
    Audio/Video Security System
  • Unit of Measure
    Each
  • Use With
    AX Series Integrated Audio/Video Security System
  • Wire Required
    CAT5/5E/6, up to 980'
