Adams Rite 8200 Life-Safety Narrow Stile Surface Vertical Rod Exit Device
Adams Rite 8200 Life-Safety Narrow Stile Surface Vertical Rod Exit Device

Adams Rite 8200 Life-Safety Narrow Stile Surface Vertical Rod Exit Device

SKU:
AR 8200
Part #:
Model:
8222-36
Was: $1,107.00
Now: $564.57

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Reset Selections

Adding to cart… The item has been added
California Prop 65 Warning
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Related Products

Product Overview

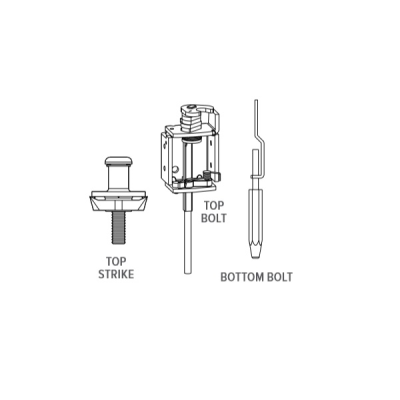

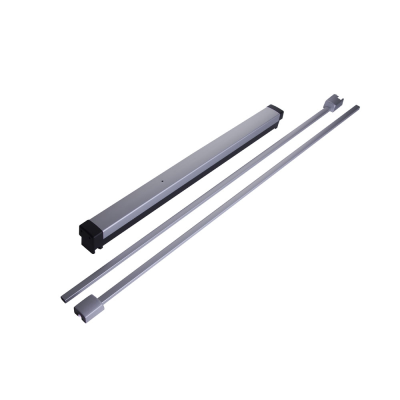

The 8200 Series Narrow Stile Surface Vertical Rod Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with surface vertical rods for two-point locking. Designed for use in applications with single doors or pairs of doors. The patented top latching mechanism utilizes a rotating top bolt which latches around the header strike, interlocking the door to the frame. Adjustable steel rods protected in contoured covers. The hexagonal, hardened steel bottom bolt is shielded in a cast housing for strength and stability. Supplied with standard header strike. Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder (available separately).

Resources

Warranty Information

5 Years Limited

Specifications

  • Application
    Single or pairs of doors
  • Country of Origin
    USA
  • Cylinder
    not included
  • Device Type
    Surface Vertical Rod
  • Dogging Options
    Hex Key Standard
  • Door Height
    8' (2.44 m)
  • Door Material
    Aluminum
  • Door Thickness
    1-3/4" - 2-1/4" (44.5mm - 57.2mm)
  • Fasteners
    Standard machine screws
  • Fire Rated
    Non Rated
  • Grade
    Grade 1
  • Hand
    Non-Handed
  • Height
    Bar adjusts from 30" (762mm) to 44" (1117.6mm)
  • Material
    Extruded Aluminum Push Bar
  • Projection
    2-15/16" (74.6mm), 1-15/16" (49.2) when Dogged
  • Rated Opening Compliant
    No
  • Series
    Adams Rite 8200 Series Exit Devices
  • Standards
    UL305 Panic Hardware, ANSI/BHMA A156.3
  • Stiles
    2" (50.8mm) Minimum
  • Trim
    not included
  • Type
    Narrow Stile Pushpad
  • Unit of Measure
    Each
  • Weight
    12
  • Width
    2" (51mm)
