ABH A210 Full Surface, Swing Clear, Continuous Gear Hinge

SKU:
ABH A210
Part #:
Model:
A210HD-79B
$95.53 - $190.14

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

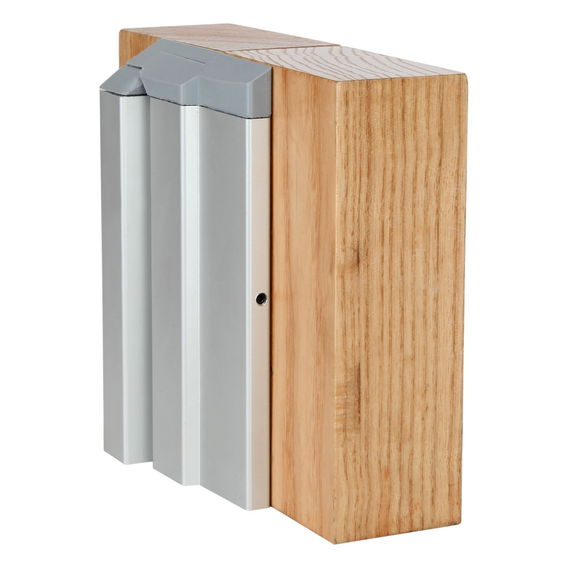

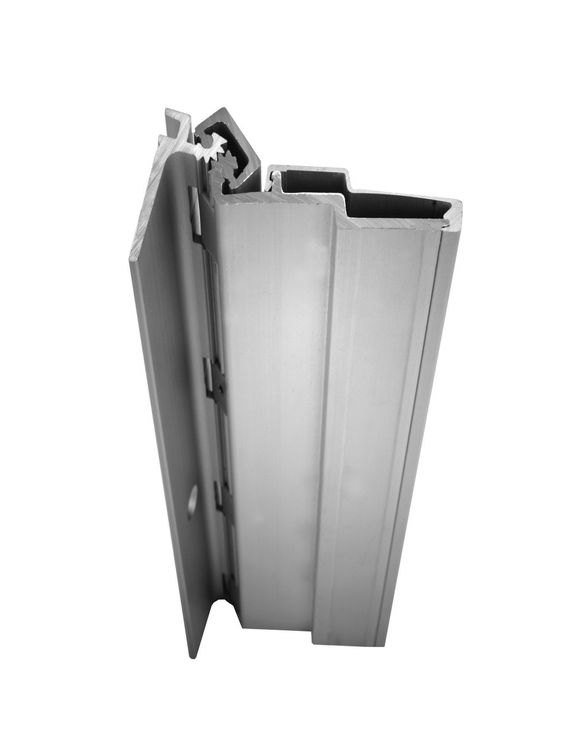

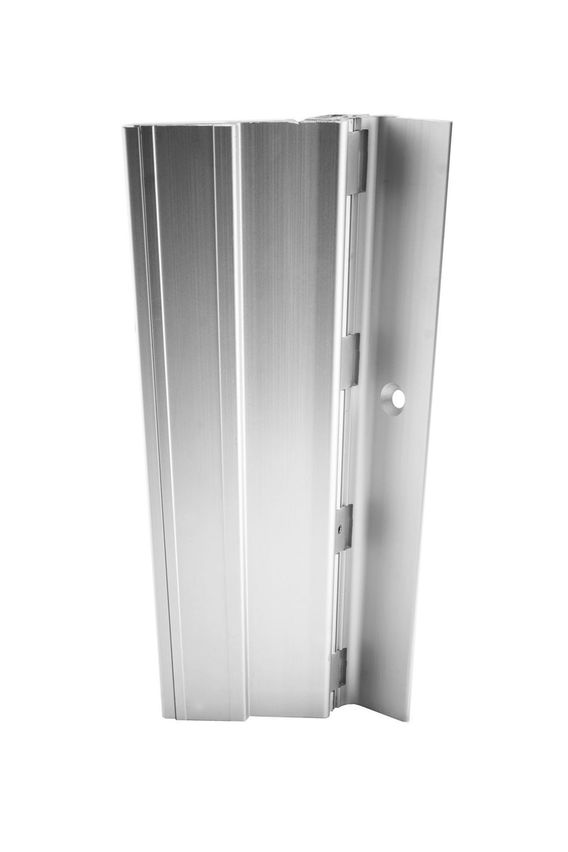

This is a full surface, heavy duty, aluminum continuous gear hinge for no door inset, flush mount. Swing clear application. Fire rated for use on metal swing type doors rated up to 90 minutes and wood swing type doors up to 60 minutes. Continuous hinges alleviate most common alignment problems.

Specifications

  • Fasteners
    12-24ea 7/8" undercut self-drilling, thread forming tek machine screws and 1/4-20 sex bolts and shoulder bolts for door
  • Hand
    Non-Handed
  • Hinge Type
    Continuous Hinge
  • Max. Door Weight
    450 lbs.
  • Max. Door Width
    48"
  • Mounting Style
    Flush
  • Rated Opening Compliant
    Yes
  • Series
    A210 Aluminum Continuous Gear Hinges, Full Surface, Swing Clear
  • Unit of Measure
    Each
  • Weight
    9
