ABH 0519 Pocket Pivot

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

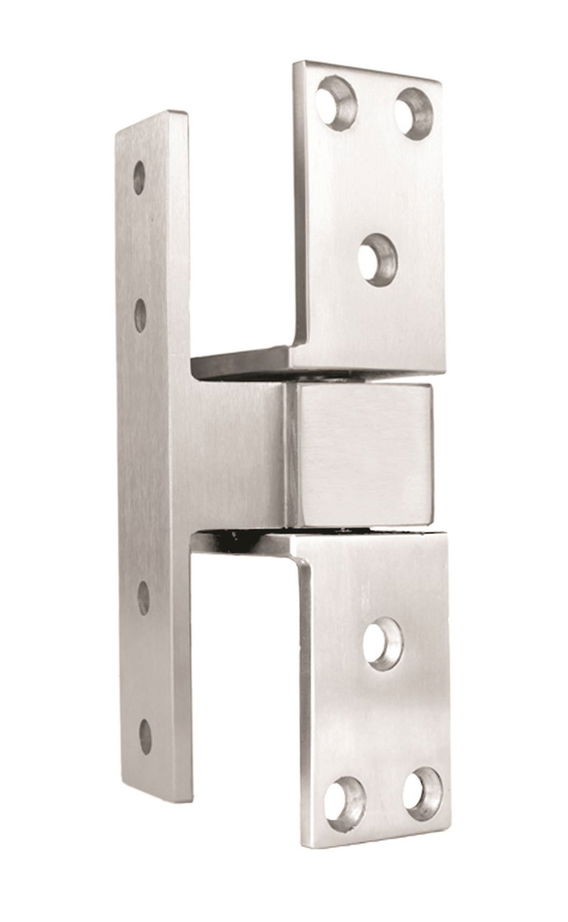

ABH 0519 Pocket Pivot

SKU:
ABH 0519
Part #:
Model:
0519-S1
$205.71 - $267.86

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

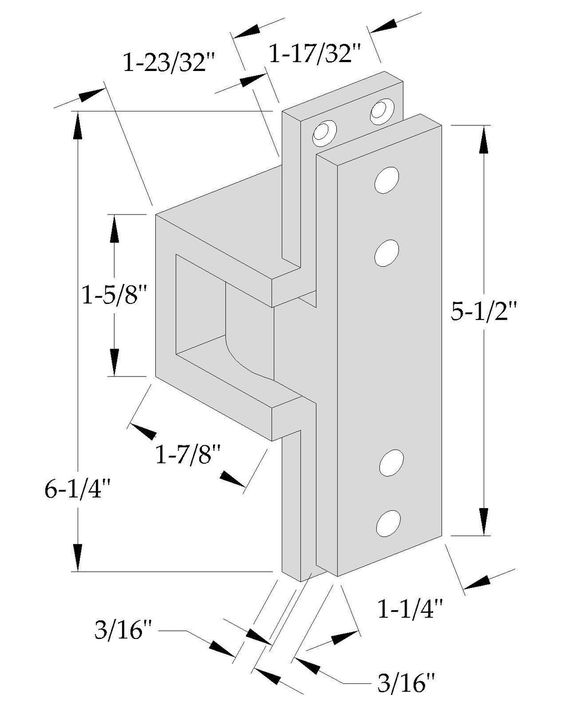

The 0519 Pocket Pivot allows the door to swing into a pocket in the frame at a right angle. Pivot point is located inside the frame. When the door is in the pocket it is completely clear of the door opening and flush with adjacent wall. Heavy duty stainless steel needle bearings, stainless steel base material. Maximum door swing is 90 degrees. Minimum of three pocket pivots per door 60-90" tall, add one pivot for each additional 30" in door height. 90lbs maximum door load per pivot. UL listed for use on 3-hour fire rated doors. Reversible installation.

Specifications

  • Hand
    Non-Handed
  • Unit of Measure
    Each
  • Weight
    2.5
