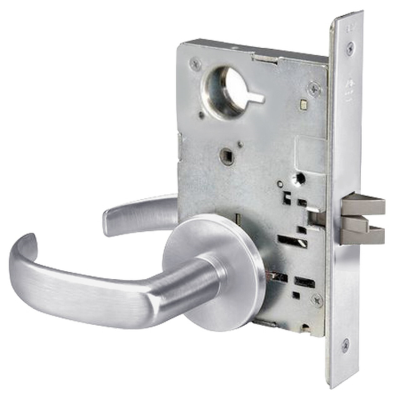

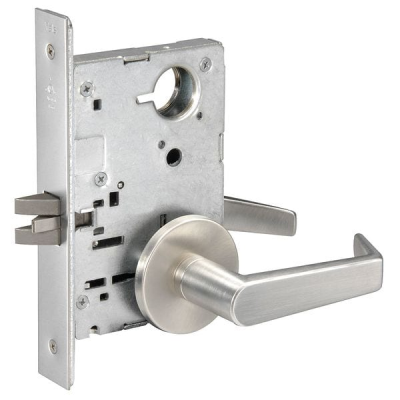

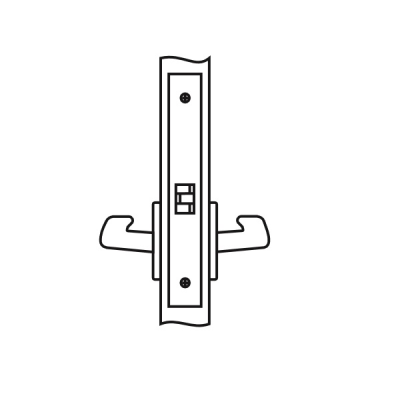

Accentra (Yale) 8800FL Heavy Duty Mortise Lockset, Passage/Closet (F01) Function
SKU:LBDY8801FL 626
Was:$526.82
Now:$339.80
Reset Selections
- Chat With An Expert
- Resources & Tools
- Return Policy
- Request Volume Pricing
Product Overview
Accentra (Yale) 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard non-handed strike. Once installed, the 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability. The 8800 Series Mortise Lock is even backed by a 10 year mechanical warranty, making this product completely worry-free. Heavy-duty trim for resistance against damage and vandalism. UL/cUL listed for 3 hour fire rated doors. For Offices, shopping centers, industrial buildings, commercial facilities.
Warranty Information
10 Years Limited
Specifications
- ADA CompliantYes
- ApplicationFor Offices, shopping centers, industrial buildings, commercial facilities
- Backset2-3/4" (70mm)
- Bolt Throw Length3/4" (19mm) Latchbolt
- Country of OriginUSA
- Door Thickness1-3/4" (44 mm)
- Duty Weight/ClassHeavy Duty
- Faceplate Size8" x 1-1/4"
- FunctionPassage/Closet
- GradeGrade 1
- HandField Reversible
- Handle TypeLever
- MaterialZinc Plated Dichromated Wrought Steel Case, Stainless Steel Mechanism, Cast Lever
- Rated Opening CompliantYes
- SeriesYale 8800 Series Mortise Locks
- StandardsCertified ANSI/BHMA A156.13
- StrikeCurved Lip
- Strike Height4-7/8"
- Strike Number2815
- Strike TypeASA
- Strike Width1-1/4"
- Unit of MeasureEach
