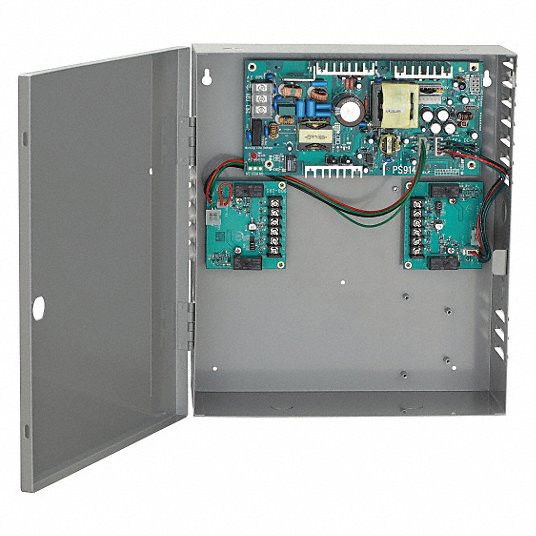

Von Duprin PS902 Power Supply, 2amp, 2 Relay, Battery Backup Kit, Baked Enamel Steel Case

SKU:PS902-2RS-BBK

$1,031.00
$786.86
Product Overview
The PS900 series power supplies offer a high degree of configurability to address the changing needs of the electronic access control market. Designed with versatility and reliability in mind, they can be configured in-field using a wide selection of option boards. Their use of separate battery management ensures tight output power regulation to protect downstream devices. The series includes three models: PS902, PS904, PS906 and PS914. They vary by total amperage output capability, ranging from 2 to 6 amps. Installation is simple with a flat mounting board and polarized locking connectors to make in-field expansions virtually plug-and-play. The design also provides easier access to the terminal blocks for connection of electrified devices, such as electric strikes, electromagnetic locks and card readers. Overload protection prevents too much current being pulled by an overload of devices. Ability to provide continual power with battery backup. Externally visible AC input indicator with isolated SPDT contacts, LED indicator provides visual status on DC output. Order to specification or field configure; option boards use polarized plug-in connectors to simplify in-field expansions. Option boards enable basic fuse protection, simple relay, advanced logic with sequencing and timing, panic device control, fire alarm relay and battery backup. Cabinet accommodates 1 or 2 batteries and up to 3 option boards, plus a fire alarm relay and a battery backup board.
Specifications
  • Additional InformationIncludes Battery Backup Kit
  • Amp Draw2A
  • ApplicationFor all Von Duprin Series Electrified Panic Device
  • Battery7.5 A 32 V ATO Blade Style Battery Fuse
  • ColorGray
  • Contact TypeSPDT
  • Country of OriginChina
  • CoverNEMA, Eight 1/2" x 3/4" Knockouts, Hinged Cover with Lock Down Screws
  • Depth4"
  • Electric OptionsDC Output:2 Position Terminal Block / AC Input: 3 Position Terminal Block with Protective Cover
  • Function2 Relay Option Board Capable of Individual or Sequential Operation for Single and Pair Door Applications
  • GradeGrade 1
  • Height14"
  • Includes(1) Board Connectors; 2 Relay Option Board; Battery Backup
  • Input Current120-240 VAC Universal Input
  • LightsLED Indicators
  • Operating Temperature32-120 deg F (0-49 deg C)
  • Output Current12-24 VDC Field Selectable with Jumper, Switching Supply, 5% Regulation, 240 mVpp Maximum Ripple
  • PowerOverload Protection - Current Limited Foldback Circuit
  • Power Transfer/WiresDC Output Wire Capacity: 12 AWG Max / AC Input Wire Capacity: 10 AWG Maximum
  • SeriesVon Duprin PS900 Series Power Supplies
  • StandardsANSI/UL 294, ULC-S318, RoHS, FCC Part 15, Class 2
  • TypeBase
  • Unit of MeasureEach
  • Volts/Amps3.15 A, 250 V, 5 x 20 mm
  • Width12"
