Securitron SEPT Square-Cut Electrical Power Transfer, Bright Chrome
SKU:SEPT
Was:$93.00
Now:$63.11
Reset Selections
- Chat With An Expert
- Resources & Tools
- Return Policy
- Request Volume Pricing
Product Overview

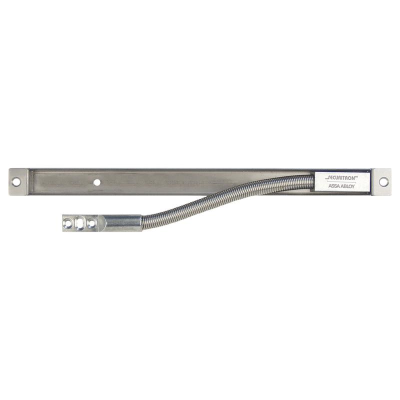

The Square-Cut Electrical Power Transfer, SEPT, offers concealed, secure conduit for power and data transfer between a frame and door. This unit is designed with a stamped steel housing and spring steel conduit to protect power and data wires. The square mounting tabs provide easier installation for recessed installation. The SEPT can be used on swing doors with butt hinges, continuous hinges or pivots with less than 3/4" offset. Installs in the door and frame edges. Flexible steel shield protects wires � 1/4" [6.3mm] inside diameter.
Warranty Information
Limited Lifetime
Specifications
- Additional InformationSquare Mounting Tabs
- BAA CompliantYes
- Burglar RatedNo
- Country of OriginUSA
- Fire RatedNon Rated
- FunctionPower and data transfer between a door and a frame
- Hardware FinishBright Chromium Plated 625/US26
- Length13"
- MaterialBrass/Bronze
- Mounting LocationDoor Frame/Door Edge
- Mounting StyleConcealed
- Rated Opening CompliantNo
- StandardsANSI/SDI-BHMA A250.13
- Unit of MeasureEach
- Weight0.85
- Width1"
