Securitron M68 Magnalock, 1200lb Holding Force, Satin Aluminum

SKU:SEC M68

$513.68-$580.86
Reset Selections
Product Overview

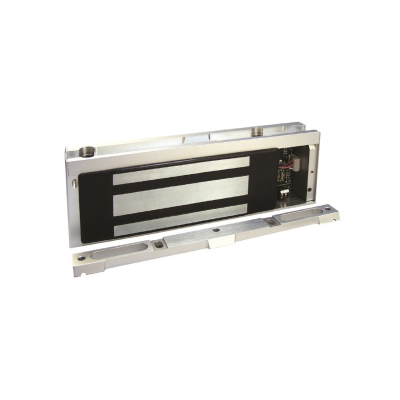

Ideal for traffic control in high-use areas where higher security is needed, the Securitron M68 electromagnetic lock provides reliability, durability and strength with low maintenance and efficient power consumption. Bracket mounting and internal wiring access chamber provide ease of installation. Ultra-secure collapsing blind nuts mount to door frame for strength and reliability. Automatic dual-voltage, no field adjustment required. Patented instant release circuit, no residual magnetism. Rust resistant, all ferrous metal surfaces plated for durability.
Warranty Information

Limited Lifetime

Specifications
  • Additional InformationPoE Friendly
  • Amp Draw250 mA @ 12 VDC, 125 mA @ 24 VDC
  • BAA CompliantYes
  • Burglar RatedNo
  • Country of OriginUSA
  • Depth2"
  • GradeGrade 2
  • Hardware FinishSatin Aluminum, Clear Anodized 628/US28
  • Height3-5/8"
  • Holding Force1200 lb
  • MaterialAluminum
  • Mounting LocationIndoor
  • Mounting StyleBracket Mount
  • Operating Temperature32-110 deg F (0-43 deg C)
  • Rated Opening CompliantYes
  • SeriesM68 Series Electromagnetic Lockset
  • StandardsUL10C Listed, CAN4-S104, CAN/ULC-S533 Listed, ANSI/UL294, CSA-C22.2 No.205 Listed, ANSI/BHMA A156.23, E08501-1000, CSFM
  • Switch TypeDPS
  • Unit of MeasureEach
  • Voltage Rating12/24 VDC
  • Weight13
  • Width10-1/2"
