Learn MoreSecuritron M34 Recessed Magnalock, 500lb Holding Force, Satin Stainless Steel
SKU:M34R
Was:$521.00
Now:$353.54
Reset Selections
- Chat With An Expert
- Resources & Tools
- Return Policy
- Request Volume Pricing
Product Overview

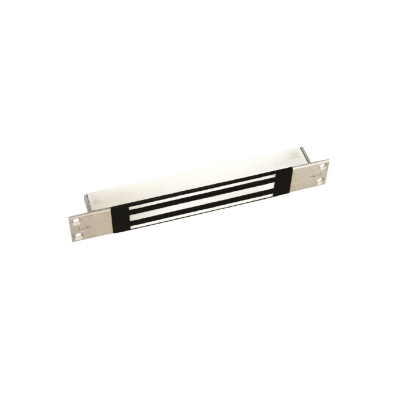

The Securitron M34R secures single sliding doors with Magnalock strength for traffic control applications within a monitored perimeter. The recessed design on the edge of the door that comes against the frame when the door is closed conceals the maglock for hidden protection that blends with the aesthetics of the opening. Works great on automatic single sliding doors or on sliding doors for patios, storage closets and more. Fully sealed electronics for tamper proof and weatherproof operations. Ten feet of jacketed, stranded conductor cable. Automatic dual-voltage, no field adjustment required. Patented instant release circuit, no residual magnetism. Rust resistant, all ferrous metal surfaces plated for durability.
Warranty Information
Limited Lifetime
Specifications
- Amp Draw320 mA @ 12 VDC, 170 mA @ 24 VDC
- ApplicationFor sliding doors
- BAA CompliantYes
- Country of OriginUSA
- Depth1-1/8"
- Hardware FinishSatin Stainless Steel 630/US32D
- Height10-1/2"
- Holding Force500 lb
- MaterialStainless Steel
- Mounting LocationIndoor/Outdoor
- Mounting StyleRecessed Mount
- Operating Temperature-40-140 deg F (-40-60 deg C)
- Power Transfer/Wires10 ft [3.05m] of jacketed, stranded conductor cable
- SeriesM34R Series Electromagnetic Lockset
- StandardsUL10C Listed, CAN4-S104, CAN/ULC-S533 Listed, CSFM
- Strike Size1-7/16"W x 6-3/8"H x 1/2"D
- Unit of MeasureEach
- Voltage Rating12/24 VDC
- Weight5
- Width1-1/2"
