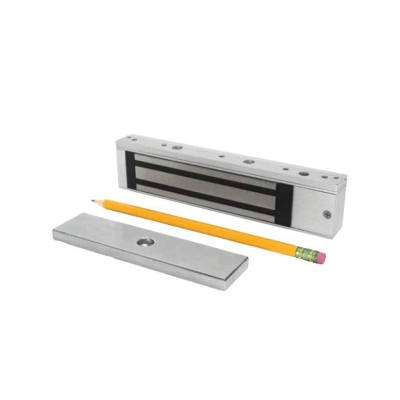

SDC E300 Micro Magnetic Lock, 300lbs

SKU:
E300
Part #:
Model:
SDCE300
Was: $203.00
Now: $158.34

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

Eliminate keys and expand the reach of access control systems to drawers, cabinets and lockers – any critical use - where the application of a compact, specialized electromagnetic lock provides a higher level of security. SDC’s E300 micro electromagnetic cabinet locks provide a connected access control solution that is virtually maintenance free and has a lock status output for remote monitoring and system application needs.

The compact size allows easy installation in small cabinets or restricted areas. No special tools are required.

Resources

Warranty Information

Limited Lifetime

Specifications

  • Application
    For Cabinets, Drawers, Machine Equipment Housings, Display Cases, Gun Safes, Package Pass Through Doors
  • Armature Size
    5-1/8"L x 1-1/4"H x 3/8"D
  • Contact Rating
    Lock Status Contact SPDT, 250 mA @ 30VDC
  • Contact Type
    SPDT
  • Electrical Rating
    360 mA @ 12 VDC, 180 mA @ 24 VDC
  • Failure Mode
    Fail Safe
  • Hardware Finish
    Satin Aluminum, Clear Anodized 628/US28
  • Holding Force
    300 lbs.
  • Includes
    Mounting Bracket with Sheet Metal Screws
  • Mounting Style
    Surface
  • Operating Voltage
    12VDC/24VDC
  • Power
    Hardwired
  • Power Transfer/Wires
    PC board with voltage and current spike protection, instant release anti-residual magnetism circuit, terminal block for power input
  • Size
    Lock 7"L x1-5/8"H x 7/8"D
  • Unit of Measure
    Each
  • Weight
    2.5 lbs.
