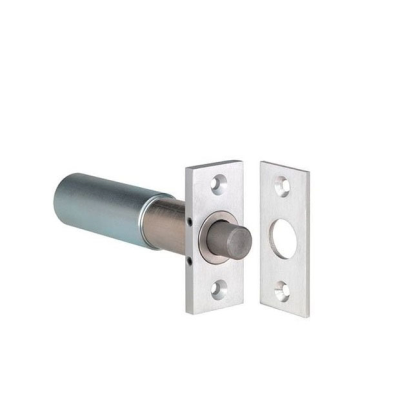

Product Overview
Recommended for metal frames and cabinets with a minimum depth of 5" inches. The fail safe 110 and fail secure 210 are the most basic bolt locks available. The bolt assembly is adjustable forward up to 1" past the face plate to accommodate wide door gaps or special applications.
Specifications
- ApplicationFor metal frames and cabinets with a minimum depth of 5" inches
- Bolt1/2" Diameter / Adjustable Assembly
- Bolt Throw Length1/2" (13mm)
- Country of OriginUSA
- Electrical Rating0.9 A @ 12 VDC, 0.45 A @ 24 VDC Continuous Duty
- Faceplate Depth1/4"
- Faceplate Height2-3/4"
- Faceplate Width1-1/4"
- Frame ApplicationMetal
- Hardware FinishSatin Aluminum, Clear Anodized 628/US28
- IncludesAuto Relock Switch
- Operating Voltage12VDC/24VDC
- PowerHardwired
- StandardsUL Listed
- Strike Size1-1/4"W x 1/8"D x 2-3/4"H
- Unit of MeasureEach
