Product Overview

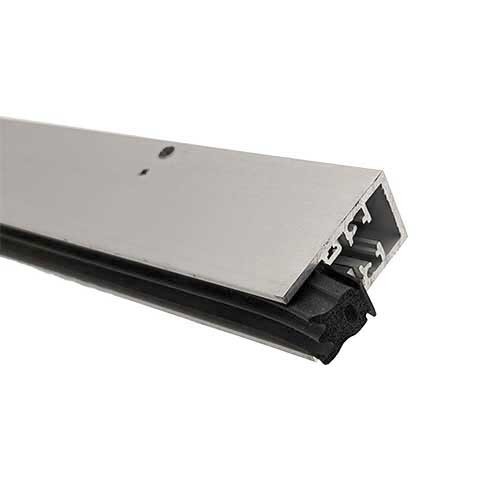

Pemko automatic door bottoms consist of an aluminum case which surrounds a movable drop-bar seal. The drop-bar seal is actuated by a plunger which contacts the jamb as the door is closing, forcing the drop-bar seal down against the floor or threshold. Automatic door bottoms seal up to a 3/4" gap under the door. Full mortise application.
Warranty Information
5 Years Limited
Specifications
- FastenersWood Screws, Mounting Screws, End Cap Screws
- Hardware FinishSatin Aluminum, Clear Anodized 628/US28
- Height1-25/32in.
- InsertBlack Sponge EPDM
- Material6063-T6 Aluminum Alloy and Temper Retainer
- Mounting StyleSurface or Semi-Mortise
- Rated Opening CompliantYes
- SeriesPemko Automatic Door Bottom
- StandardsANSI/BHMA A156.22; Tested to UL 1784 and meets the requirements of NFPA 105-2013; Tested to UL10B & UL10C; Tested to ASTM E-283-04 (2012); Tested to ASTM E90 – 2009
- TypeSurface & Semi Mortised, Automatic
- Unit of MeasureEach
- Width29/32in.
