Product Overview

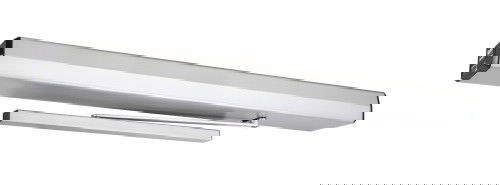

The Norton Rixson 6200 Series is a cost effective electromechanical low energy operator offering intelligent functions, such as power close, latch assist and obstruction detection. Specifically designed for high traffic applications requiring a narrow profile to blend more seamlessly with the frame while fitting challenging applications with minimal overhead space. Complete with electric lock interface, touchless activation support, and mobile device WiFi programming for easy installation and setup.
Resources
Warranty Information
2 Years Limited
Specifications
- ADA CompliantYes
- BAA CompliantYes
- Back CheckElectronic
- CommunicationEasy setup via mobile device
- Current Draw1.5A
- Degree SwingPull Side Mount, up to 120 Degrees; Push Side Mount, 130 Degrees
- DelayDelays operator opening for locking hardware
- DesignModular
- Device Length37-3/8"
- FunctionElectromechanical Door Closer
- HandNon-Handed
- Height4-1/8" (without arm)
- Hold OpenAdjustable / Infinite
- Max. Door Weight200lbs
- Max. Door Width48"
- PowerInput 120 VAC, 3A, 60Hz
- Rated Opening CompliantUL10C positive pressure up to 3 hours
- Reveal1/8" to 3-1/4" Depending on mount
- Series6200 Series Low Energy Operator
- StandardsANSI/BHMA A156.19; UL325/991 certified
- Unit of MeasureEach
- Use WithActivated by wall switch, hands-free and RF devices
- Volts/AmpsOutput 24VDC @ 0.4A max draw (less accessories)
- Width4-3/4" (121mm)
