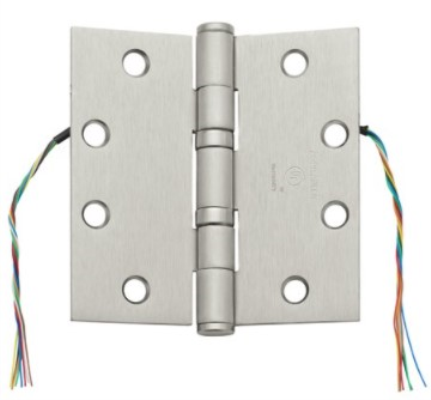

The full mortise, bearing hinge is recommended for low frequency doors. Use for common flush door/frame/wall applications. McKinney Concealed Circuit (CC) electric hinges allow a constant flow of current from the power source through the hinge to electrified door hardware. No external wires can be seen, eliminating disruption of power due to tampering or disconnection, and improving the aesthetics of the opening. Allows operation of devices requiring power such as electric locks, electric strikes, and electric latch retraction exit devices. 28 gauge wire standard. Four amp continuous @ 24 volts AC or DC per circuit 16.0 Amps intermittent duty (pulse) for 300 milliseconds. Hinges are supplied with 8" (305) leads as standard.
Specifications
- Amp Draw4amp continuous @ 24 volts AC or DC per circuit
- Bearing TypeBearing
- Corner TypeSquare
- Duty Weight/ClassStandard Duty
- FastenersMachine Screw - 1/2 x 12-24 F.H.; Wood Screw - 1-1/4 x 12 F.H
- Fire RatedNon Rated
- Gauge0.146
- GradeGrade 1
- HandNon-Handed
- Hinge TypeFull Mortise Hinge
- Knuckles5
- Mounting LocationCenter Position on Door
- Operating Voltage24 volts AC or DC per circuit
- Rated Opening CompliantNo
- StandardsANSI 8115
- Tip StyleButton
- Unit of MeasureEach
- Use WithMedium Frequency Doors / Doors with Closing Devices
