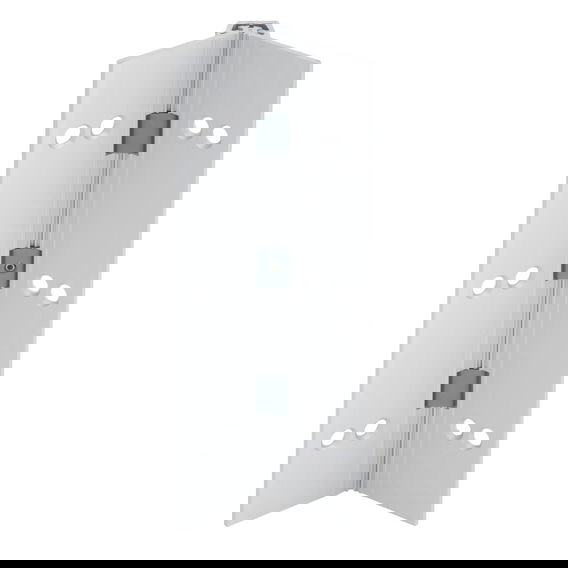

Ives 702 Pin & Barrel Continuous Hinge, Full Mortise, Center Pivot
SKU:IVES 702
$680.37-$807.35
Out of stock
Reset Selections
- Chat With An Expert
- Resources & Tools
- Return Policy
- Request Volume Pricing
Product Overview
The standard series pin and barrel continuous hinges features twin self lubricated nylon bearings with a stainless steel pin.
All Ives pin and barrel hinges are certified UL10C listed (3 hr).
Warranty Information
Limited Lifetime
Specifications
- Corner TypeSquare
- FastenersStandard Screw Package
- Fire RatedYes
- Gauge14 Gauge
- GradeGrade 1
- HandNon-Handed
- Hardware FinishSatin Stainless Steel 630/US32D

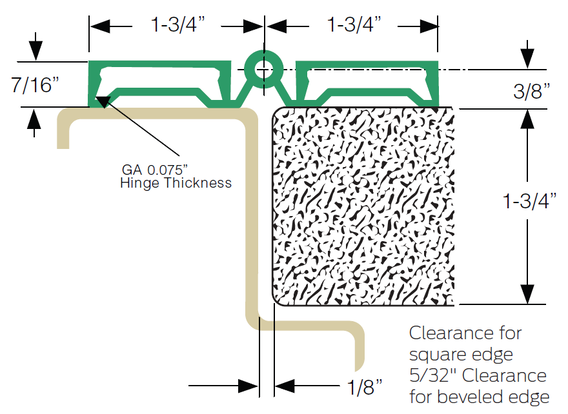

- Hinge TypeFull Mortise, Center Pivot
- Includesnone
- Material304 Stainless Steel
- Max. Door Weight300 lbs without reinforcing, 600 lbs with reinforcing
- Max. Door Width48"
- Mounting StyleFlush
- Screws10 x 1/2" SS self tapping Phillips-head screw+10 x 1" SS Phillips-head wood screw
- StandardsANSI/BHMA 156.26
- Tip StyleStandard
- Unit of MeasureEach
