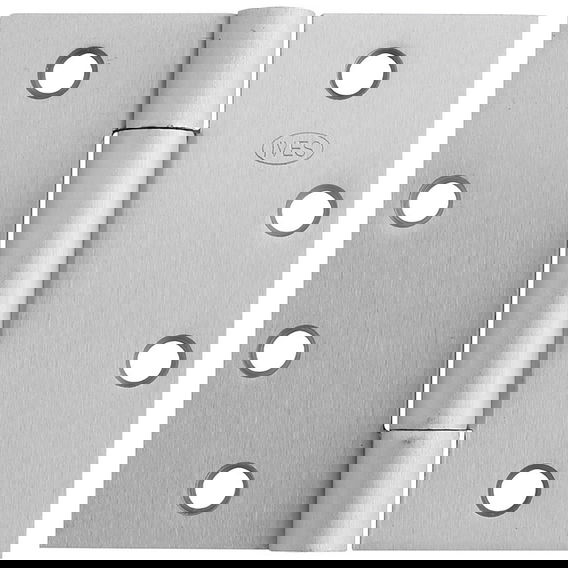

Product Overview
Ives offers a variety of architectural hinges that will cover any need commercial application while also exceeding code requirements. With tested durability and consistent superior performance, Ives architectural hinges get the job done. Spring hinges are for use with doors where self-closing is required. Packed with fasteners for hollow metal and half metal/half wood applications. UL listed for fire rated doors, maximum labeled door size - 3'0" wide x 7'0" x 1 3/4" thick as set in NFPA #80. **Additional options may be available, inquire via chat.**
Specifications
- Door HeightUnder 7'6" require 3 hinges; Over 7'6" require 4 hinges
- Door MaterialWood or Hollow Metal
- Door Thickness1-3/4"
- Door WidthUp to 36"
- Duty Weight/ClassStandard Duty
- HandNon-Handed
- Height4"
- Hinge TypeFull Mortise Hinge
- IncludesPin for setting spring tension & Adjusting wrench
- Knuckles3
- Max. Door Weight120lbs.
- Max. Door Width36"
- Rated Opening CompliantYes
- Screws12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS
- SeriesIves Architectural Hinges
- StandardsANSI/BHMA A156.17, ANSI/BHMA 156.7
- Tip StyleStandard
- TypeArchitectural Spring Hinge
- Unit of MeasureEach
- Width4"
