Product Overview

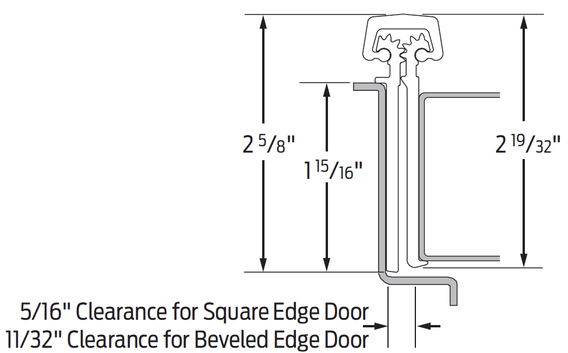

Geared continuous hinges are designed to last the life of a building by distributing the weight of a door along the entire length of its frame. Geared hinges utilize a single gear section for the leaf and a separate gear section for the frame side of the door. The two are held in place by a full-length cover channel and rotate on a series of bearings. Ives HD models feature a spread bearing design for lighter weight doors.
Warranty Information
Limited Lifetime
Specifications
- Bearing TypeContinuous Gear
- Corner TypeSquare
- DesignSpread bearing design
- Door Thickness1-3/4"
- Duty Weight/ClassHeavy Duty
- EdgesBeveled or square edge doors
- FunctionDoor edge protector
- GradeGrade 1
- Hinge TypeContinuous, Full Mortise
- Max. Door Weight450 pounds without reinforcing, 600 pounds with reinforcing
- Max. Door Width4'
- Pin Typenone
- Rated Opening CompliantTested & approved UL 10C (90 minutes)
- Screws12-24 x 3⁄4" Steel self drilling / self tapping Phillips-head screw
- SeriesIves HD Series
- StandardsANSI/BHMA 156.26
- Tip StyleStandard
- Unit of MeasureEach
- Use WithVon Duprin EPT-2, EPT-10 and PNT-1 devices (on applicable items)
