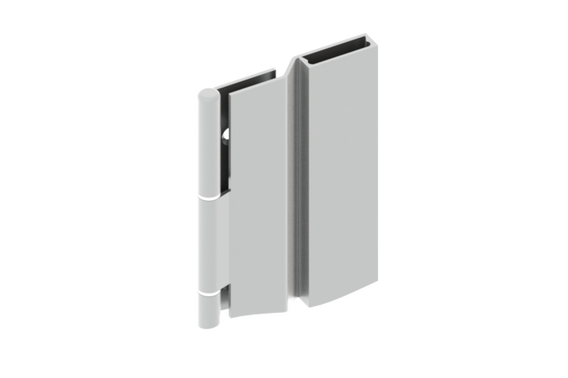

Hager 790-909 Full Surface, Swing Clear, Continuous Hinge
SKU:PS909083B32D000001
Was:$900.74
Now:$466.45
Reset Selections
- Chat With An Expert
- Resources & Tools
- Return Policy
- Request Volume Pricing
Product Overview

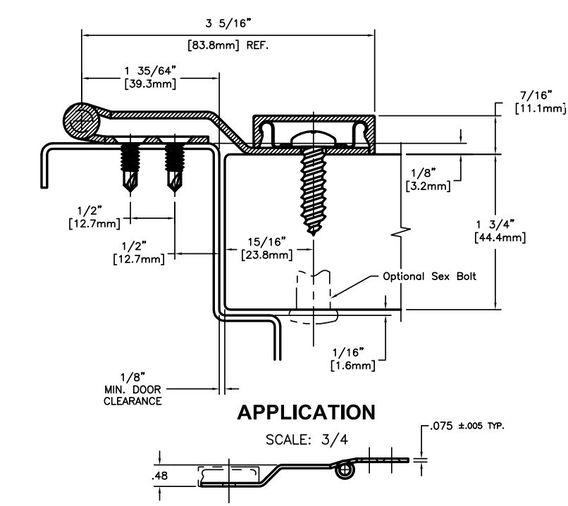

Stainless Steel Continuous Hinge, Swing Clear, Full Surface. For doors of any material. For beveled or square edge doors. 1/8" inset. 1/8" minimum recommended hinge side plus standard lock side clearance. Door and frame reinforcement not required to 200lbs. Heavier weight use 16-gauge channel. 1/4" diameter stainless steel pin and dual 6/6 nylon bearings between each knuckle and security molding. Fire rated for use up to 3 hours metal and 90 minutes wood composite doors.
Warranty Information
Limited Lifetime
Specifications
- ADA CompliantYes
- BAA CompliantYes
- Country of OriginUSA
- Door Thickness1-3/4"
- Fasteners#10-24x5/8" S/S Dril-Kwik (R) (metal frame), #10-16 x 1-1/4" S/S Type AB (wood door)
- Hardware FinishSatin Stainless Steel 630/US32D
- Hinge TypeContinuous, Swing Clear Hinge
- Material14-ga 304 stainless steel
- Rated Opening CompliantYes
- StandardsANSI A156.26
- Unit of MeasureEach
- Weight16.36
