Product Overview

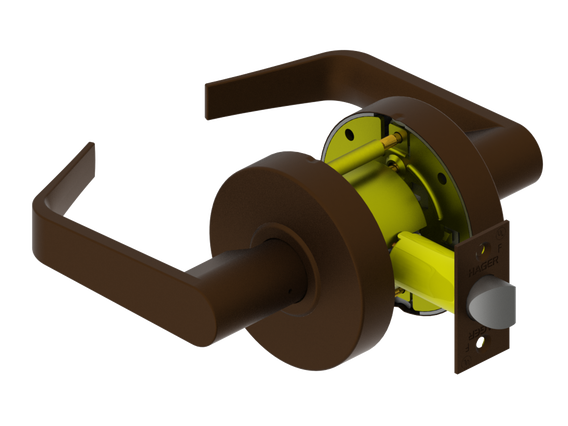

Standard duty, commercial, grade 2 cylindrical lockset. Passage function, latchbolt retracted by knob/lever from either side at all times; used where doors do not need to lock. No exposed mounting screws. Removable thru-bolts; failure to install thru-bolts and removable screw posts voids BHMA certification, UL rating, and warranty. UL/cUL Listed for all functions up to 3 hours "A" label single doors.
Warranty Information
5 Years Limited
Specifications
- ActionLatchbolt retracted by knob/lever from either side at all time
- ADA CompliantYes
- BAA CompliantYes
- Backset2-3/4" (70mm) Standard
- BoltStainless Steel
- Bolt Throw Length1/2" (13mm)
- Country of OriginTaiwan
- Door Thickness1-3/8" - 2" (35mm - 51mm)
- Duty Weight/ClassStandard Duty
- Faceplate Size2-1/4" x 1-1/8" (57mm x 29mm), Square Corner
- Function10 - Passage (ANSI F75)
- GradeGrade 2
- HandNon-Handed

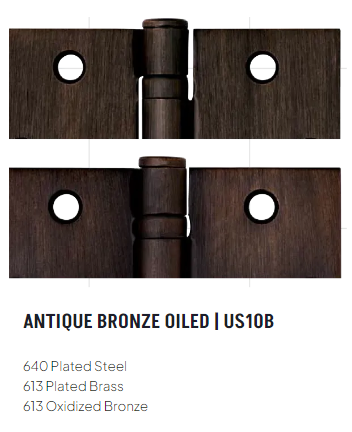

- Hardware FinishDark Oxidized Satin Bronze, Oil Rubbed 613/US10B

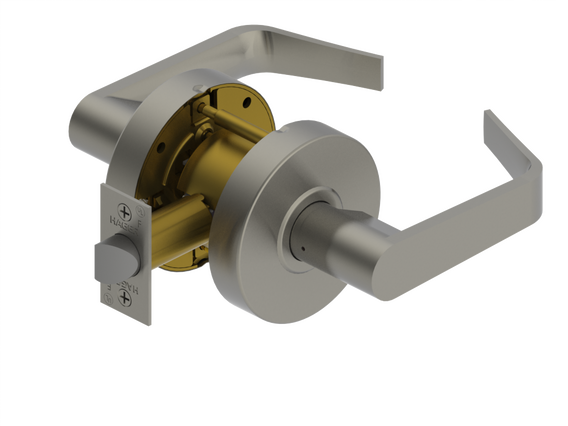

- Lever/Knob DesignWithnell Lever
- Projection2-21/32" (67.5mm)
- Rated Opening CompliantYes
- Rose/Escutcheon Size3-11/32" (85 mm) Diameter
- Series2500 Series Cylindrical Lock
- StandardsANSI A117.1, UL/cUL, UL10C, UL10B, BHMA A156.2, EPD
- Strike4-7/8" x 1-1/4" (124mm x 32mm) Standard
- Strike StandardASA Strike
- Through BoltsYes
- Unit of MeasureEach
- Weight1.60
