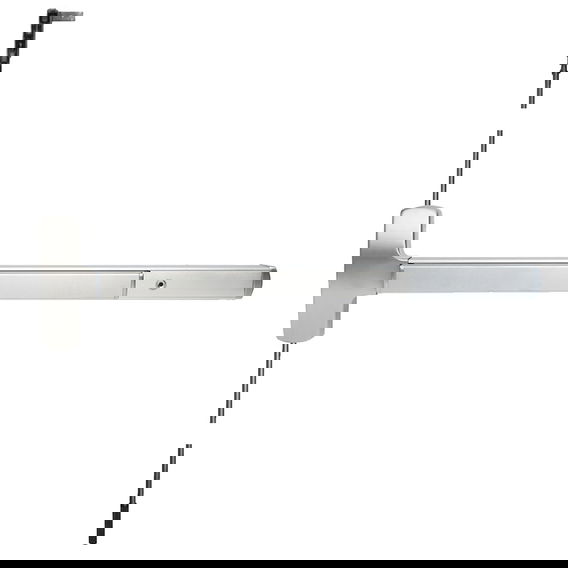

Falcon 25 Series Concealed Vertical Rod Exit Device, Panic

SKU:FAL 25-C

$1,142.03-$2,037.51
Reset Selections
Product Overview
The 24/25 series heavy-duty architectural push pad exit devices provide quick, easy egress suitable for various applications. Offices, banks, assisted living facilities, retail stores and other commercial buildings have constant traffic, so the exit devices must be able to perform under continual use and abuse. The 24/25 Series exit devices out-perform competitors and are offered at a reasonable price. The ANSI/BHMA Grade 1 certified exit devices feature a sleek, streamlined styling and smart solutions for any building design while assuring egress in case of an emergency. Extruded aluminum construction delivers greater strength and impact resistance. No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation. One trim input design provides maximum versatility and ability to use various trims. Stainless steel push pad cover provides a scratch-resistant pushing surface. Flush-end caps help prevent them from being destroyed or knocked off in abusive situations. Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.
Warranty Information

10 Years Limited

Specifications
  • ApplicationInterior or Exterior Doors
  • BoltTop Stainless Steel, Bottom Square
  • Bolt Throw LengthTop 3/4", Bottom 1/2"
  • CylinderNOT Included
  • Device TypeConcealed Vertical Rod
  • Door Height84"
  • Door MaterialWood or Metal
  • Door Thickness1-3/4"
  • Duty Weight/ClassHeavy Duty
  • FastenersAll mounting screws are concealed, sheet metal screws and machine screws standard.
  • Fire RatedNon Rated
  • GradeGrade 1
  • Length7' Vertical Rods
  • MaterialCenter case is heavy wrought and sintered metal parts
  • Mounting Location40 -1/4" from CL to finished floor
  • Mounting StyleConcealed Rods
  • Projection2-3/4" maximum, 2" when dogged
  • Rated Opening CompliantNo
  • SeriesFalcon 24/25 Series Exit Devices
  • StandardsANSI 156.3-2001
  • Stiles3-1/2" Minimum
  • StrikeBottom strike grouted into concrete or masonry floors
  • Strike Bottom2130
  • Strike Top4188
  • TypeWide Stile Pushpad
  • Unit of MeasureEach
