Product Overview
The Corbin Russwin unit lock has provided decades of service in some of the world's most prestigious buildings. Its pre-assembled, unitized construction is ideal for projects where installation costs are to be minimized. Typical high-traffic commercial, institutional and industrial applications include: Schools and universities, Office buildings, Hospitals, Municipal buildings, & Historic buildings
Factory pre-assembled for quick, economical, one-piece installation: no job site assembly required.
3/4" radius latchbolt, designed to wedge more tightly into the strike when tampered with, while meeting all ADA force-to-latch requirements.
All locks listed for A label and lesser class doors, single or pair, maximum door size 3'8" (111.7cm) x 7'2"(218.4cm). All locksets also listed for B label doors, single or pair, maximum door size 4' x 8'. Letter F and UL symbol on lock frame indicate listing.
Warranty Information
1 Year Limited
Specifications
- ActionDeadlocking latchbolt by grip either side, except when key outside locks outside grip. Outside grip unlocked by key outside. Inside grip always free.
- Backset2-3/4" (70mm)
- BoltBrass, chrome plated; Pivoted, swinging type
- Bolt Throw Length3/4" (19mm)
- Device LengthLever 5-5/16"L
- Door Thickness1-3/4" (44mm)

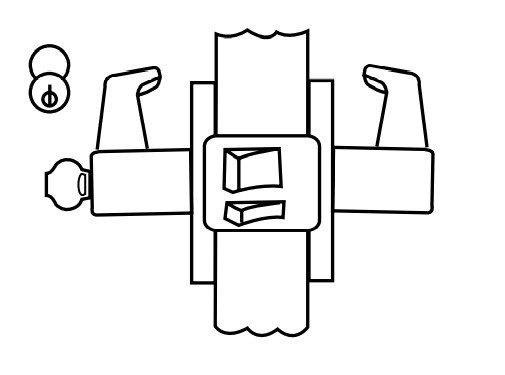

- FunctionClassroom (F42)
- Handle TypeLever
- Lever/Knob DesignEssex
- Lock ChassisOne-piece investment cast frame. Machined internal parts of steel, bronze and stainless steel. Zinc dichromated for corrosion resistance.
- Projection2-7/16"
- Rated Opening CompliantYes
- Rose/Escutcheon Size3-1/8"H x 4-1/8"W
- SeriesCorbin Russwin UT5200 Unit Lockset Series
- StandardsA156.2 Series 2000; Meets A117.1 Accessibility Code
- StrikeANSI strike with nylon adjusting screw
- Strike Size4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center
- Unit of MeasureEach
