Product Overview
The Best EZ Series Keypad Lock has a heavy-duty mechanical platform designed and manufactured for the toughest applications. The key override feature allows for mechanical access. 12 position keypad design with audible and visual feedback. Standard 4-cell battery holder, each with AA alkaline batteries that are easily changed. Weather-resistant for versatile applications, including doors exposed to inclement weather. Variable PIN length from 3-6 digits. Passage Mode priviledge, authorized users can unlock device for extended periods of time. Provides for one administrator PIN and five supervisor PINs to alow easy management of groups of users.
Specifications
- ADA CompliantYes
- Additional InformationWeatherproof lens and gasket provides protection for outdoor use (Usable in most environmental/exterior applications)
- ApplicationFor Hollow Metal/Wood Doors
- Backset2-3/4" (70mm)
- Battery4 AA Alkaline Batteries
- Bolt Throw Length9/16" (14mm)
- Country of OriginUSA
- CylinderSFIC Prep Less Core
- Door Thickness1-3/4 - 2-1/4 in.

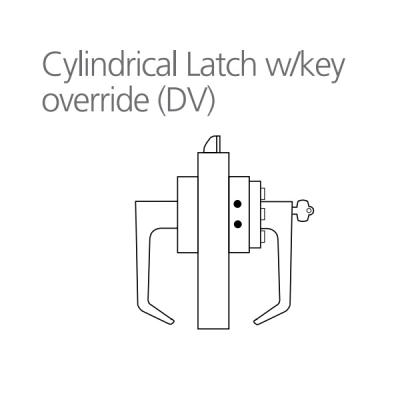

- FunctionCylindrical Latch with Key Override
- GradeGrade 1
- HandNon-Handed
- Handle TypeLever
- Hardware FinishSatin Chromium Plated 626/US26D
- IncludesMounting Hardware
- Keying7-pin housing accepts all BEST cores
- Keypad TypeHigh Impact ABS, 2-5/8" x 3-3/8"
- KeysBezel: high impact ABS, Keypad: encapsulated elastomer
- LightsGreen indicates valid acces; Red indicates invalid access
- Number of Users50
- PowerBattery (4 AA)
- Programmer/ProgrammingProgram through keypad
- Projection2-3/4"
- Rated Opening CompliantYes
- Reader TechnologyKeypad
- Rose/Escutcheon Size10-1/2"H x 3-5/16"W x 1"D
- Rust InhibitorSteel case is zinc dichromate plated for corrosion protection
- ScrewsCombination
- SeriesEZ Series Keypad Locks / 9K Series Cylindrical Locks
- StandardsANSI A156.2, UL Listed
- Trimincluded
- TypeElectrified, Latch with Key
- Unit of MeasureEach
