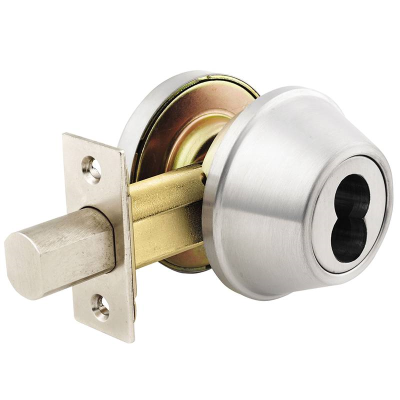

Arrow D Series Deadbolt, Single Cylinder, Classroom Function, Grade 1
SKU:D64 26D IC
Was:$190.44
Now:$122.84
Reset Selections
- Chat With An Expert
- Resources & Tools
- Return Policy
- Request Volume Pricing
Product Overview
Arrow D Series deadlocks are engineered to perform under the most extreme conditions where security is critical. Our Grade 1 extra heavy duty deadlock surpasses the demands of industrial, institutional and commercial applications. Two-piece housing with free-spinning outer ring to prevent wrenching. Solid steel deadbolt with hardened, free spinning steel pin and insert.
Resources
Specifications
- ActionInside - Turnpiece Retracts Bolt But Does Not Project Bolt; Outside - Key Retracts and Projects Bolt
- ADA CompliantNo
- ApplicationIndustrial, institutional and commercial
- Backset2-3/4" (70 mm)
- Bolt Throw Length1" (25.5mm)
- Door Thickness1-3/8 - 1-3/4"
- Duty Weight/ClassExtra Heavy Duty
- Faceplate Height2-1/4"
- Faceplate Width1-1/8"
- Fire RatedNo
- FunctionClassroom
- GradeGrade 1
- HandNon-Handed
- Handle TypeThumbturn
- Rated Opening CompliantYes
- ScrewsCombination
- SeriesD Series Deadbolts
- StandardsANSI A156.5
- Strike Height2-3/4"
- Strike Number346
- Strike TypeFlat
- Strike Width1-1/8"
- Unit of MeasureEach
