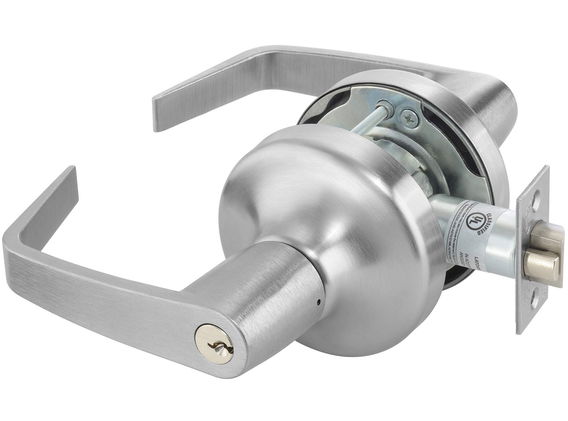

Accentra (Yale) 4700LN Series Cylindrical Lockset, Classroom (F84) Function

SKU:YAL 4708

$682.52
$213.29
Reset Selections
Product Overview
Accentra (Yale) 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN Series is certified to ANSI/BHMA Grade 1 standards and is UL fire-listed for all functions ensuring reliability and peace of mind. Freewheeling trim. Ul listed for use on firedoors having a rating up to and including 3 hours.
Warranty Information

5 Years Limited

Specifications
  • ADA CompliantYes
  • ApplicationFor classroom or utility room doors
  • Backset2-3/4" (70mm)
  • Bolt Throw Length1/2" (13mm)
  • Country of OriginUSA
  • Door Thickness1-3/4 to 2" Adjustable
  • Faceplate Size2-1/4" x 1-1/8" Beveled Standard
  • FunctionClassroom/Utility
  • GradeGrade 1
  • HandNon-Handed
  • Handle TypeLever
  • Latch Number694
  • MaterialZinc Plated Chromated Die Cast Heavy Gauge Steel Mechanism, Brass Cylinder, Cast Zinc Lever, Wrought Brass Rose
  • Projection3-1/2"
  • Rated Opening CompliantYes
  • Rose/Escutcheon Size3-1/2" Dia.
  • SeriesYale 4700LN Series Cylindrical Locks
  • StandardsANSI/BHMA A156.2 Series 4000 Grade 1, Windstorm Certified
  • StrikeCurved Lip
  • Strike Number497
  • Strike Size4-7/8" x 1-1/8" x 1-1/4" Lip to Center
  • Strike TypeANSI
  • Unit of MeasureEach
