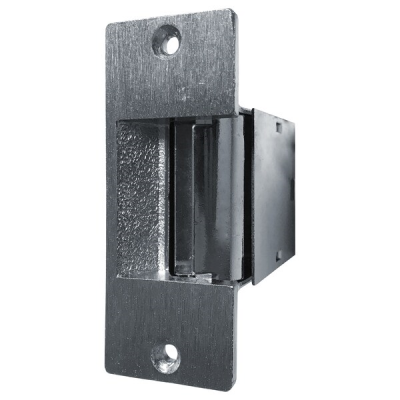

Trine S005C Electric Strike, Fail Secure, 3-1/2" Faceplate
Product Overview
The 00 Series is a light commercial electric strike with 1000 lb. holding force, fail secure, and non-handed operation. Only one moving part in the locking mechanism and a heavy duty latch spring. Trine's 004 strike is designed for use in replacement installations in wood jambs and iron gates. Use with bored cylindrical locksets having up to 3/4" throw, based on 1/8" door gap.Resources
Warranty Information
1 Year LimitedSpecifications
-
- Action
- Intermittent Duty, Buzz Sound
-
- Additional Information
- Durability - 500,000 Life Cycles
-
- Application
- Wood jambs and iron gates
-
- BAA Compliant
- Yes
-
- Backset
- 2-7/8"
-
- Bolt Throw Length
- 3/4" (19mm)
-
-
Configuration/
Connectors - Centered
-
Configuration/
-
- Country of Origin
- USA
-
- Door Gap
- 1/8"
-
- Electrical Rating
- 1.4 Ohms
-
- Faceplate Depth
- 7/32"
-
- Faceplate Size
- 1-3/8" x 3-1/2"
-
- Failure Mode
- Fail Secure
-
- Hand
- Non-Handed
-
- Holding Force
- 1000 lbs.
-
- Includes
- Electric Strike, Faceplate, Mounting Hardware
-
- Input Current
- 1.3-2.7 A
-
- Keeper Size
- 23/32"W x 5/8"D x 1-1/2"H
-
- Operating Voltage
- 8-16 VAC
-
- Power
- Hardwired
-
- Power Transfer/Wires
- Black Wires
-
- Rated Opening Compliant
- No
-
- Series
- Trine 00 Series, Light Commercial Electric Strikes
-
- Switch Type
- None
-
- Type
- Light Commercial
-
- Unit of Measure
- Each
-
- Use With
- Bored cylindrical locksets having up to 3/4" throw, based on 1/8" door gap
