Product Overview

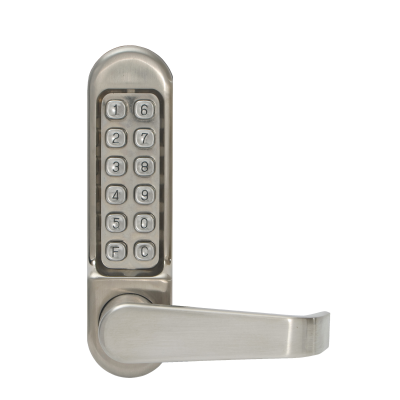

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. The Simplex 470 Series mechanical pushbutton locks provides exterior access by combination. This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
Resources
Warranty Information
1 Year Limited
Specifications
- ADA CompliantNo
- ApplicationWood or Metal Doors
- Backset2-3/4" (70mm)
- Bolt Throw Length1/2" (13mm)
- Device TypeMechanical, Passage, Tubular Latchbolt
- Door Thickness1-3/8 - 2-1/2"
- Duty Weight/ClassLight Duty
- FunctionPassage
- HandNon-Handed
- Handle TypeFlat Lever
- IncludesLock assembly, installation manual, template and required hardware; as well as two 2�" (64 mm) x 8" (203 mm) cover plates and two 2" (51 mm) gaskets
- Keypad Type5 Button Vandal Resistant
- KeysSolid Metal
- Latch Type3-1/2" Tubular Latch
- Programmer/ProgrammingLock is easily programmed via keypad without removing lock from the door
- SeriesSimplex Light Duty 470 Mechanical Lock
- Size2-1/4"W x 7-7/16"H (exterior), 2-1/4"W x 7-7/16"H (interior)
- TypeCylindrical Lock
- Unit of MeasureEach
