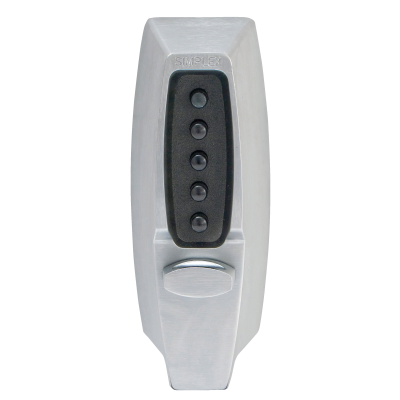

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. Simplex 7100 Series provides fully mechanical primary or auxiliary pushbutton access control by exterior combination, while allowing free egress at all times by interior thumbturn. Deadbolt models must be manually relocked. Deadlocking latch models automatically relock each time the door closes. This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
Warranty Information
1 Year Limited
Specifications
- ADA CompliantNo
- ApplicationWood or Metal Doors, Indoor or Outdoor
- Door Thickness1-3/8 - 2-1/4"
- HandField Reversible
- Handle TypeThumbturn/Lever (Clutch-protected exterior thumbturn)
- IncludesInstallation manual, full-scale template and required installation hardware
- Keypad Type5 Button Vandal Resistant
- KeysSolid Metal
- Programmer/ProgrammingLock is easily programmed via keypad without removing lock from the door
- SeriesSimplex 7100 Mechanical Pushbutton Lock

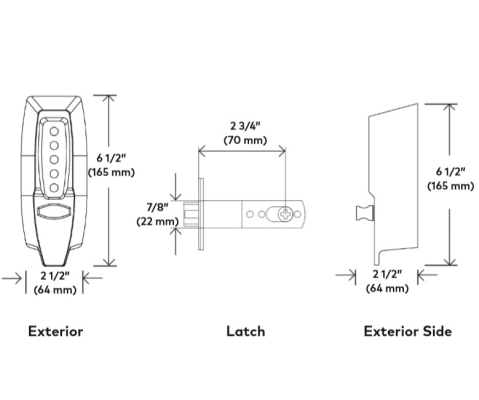

- Size2-1/2"W x 2-1/2"D x 6-1/2"H (exterior)
- Stiles4" Minimum Recommended
- Unit of MeasureEach
