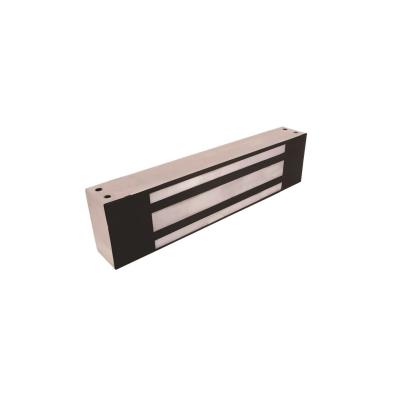

Securitron M82 Magnalock, 1800lb Holding Force, Satin Stainless Steel

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Securitron M82 Magnalock, 1800lb Holding Force, Satin Stainless Steel

SKU:
SEC M82
Part #:
Model:
M82BD
$536.75 - $585.61

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

Securitron's M82 electromagnetic lock offers unsurpassed magnetic holding strength, durability and ease of maintenance for interior, perimeter and exterior access control applications in high-risk environments such as prisons and detention facilities. With unsurpassed durability, the M82 will last long after most buildings wear out. Ultra-secure collapsing blind nuts mount to door frame for strength and reliability. Fully sealed electronics for tamper proof and weatherproof operations. Ten feet of jacketed, stranded conductor cable. Automatic dual-voltage, no field adjustment required. Patented instant release circuit, no residual magnetism. Rust resistant, all ferrous metal surfaces plated for durability.

Warranty Information

Limited Lifetime

Specifications

  • Amp Draw
    350mA @ 12VDC; 200mA @ 24VDC
  • BAA Compliant
    Yes
  • Burglar Rated
    No
  • Country of Origin
    USA

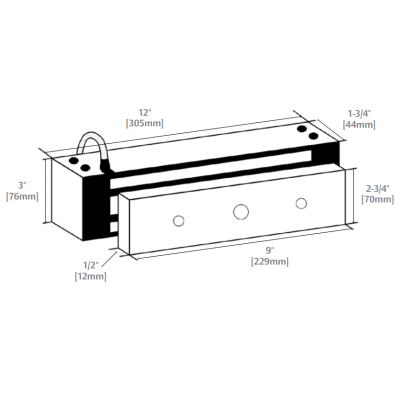

  • Depth
    1-3/4"
  • Grade
    Grade 1
  • Hardware Finish
    Satin Stainless Steel 630/US32D
  • Height
    3"
  • Holding Force
    1800 lb
  • Material
    Stainless Steel
  • Mounting Location
    Indoor/Outdoor
  • Operating Temperature
    -40-140 deg F (-40-60 deg C)
  • Power Transfer/Wires
    10 ft [3.05m] of jacketed, stranded conductor cable
  • Rated Opening Compliant
    Yes
  • Series
    M82 Series Electromagnetic Lockset
  • Standards
    UL10C Listed, CAN4-S104, CAN/ULC-S533 Listed, ANSI/UL294, CSA-C22.2 No.205 Listed, ANSI/BHMA A156.23, E08501-1000, CSFM
  • Strike Size
    9"W x 2-3/4"H x 1/2"D
  • Switch Type
    MBS/DPS
  • Unit of Measure
    Each
  • Voltage Rating
    12/24 VDC
  • Weight
    16
  • Width
    12"
