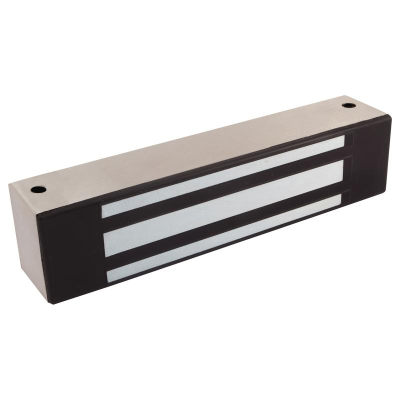

Securitron M32 Magnalock, 600lb Holding Force, Satin Stainless Steel

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Securitron M32 Magnalock, 600lb Holding Force, Satin Stainless Steel

SKU:
SEC M32
Part #:
Model:
M32BD
$299.93 - $430.21

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

The Securitron M32 electromagnetic lock is ideal for traffic control in high-use areas within secured or monitored perimeters. With unsurpassed durability, the M32 will last long after most buildings wear out. Applications include storage areas, rooms, and hallways where reliability, high durability and low-maintenance are required. Ultra-secure collapsing blind nuts mount to door frame for strength and reliability. Fully sealed electronics for tamper proof and weatherproof operations. Ten feet of jacketed, stranded conductor cable. Automatic dual-voltage, no field adjustment required. Patented instant release circuit, no residual magnetism. Rust resistant, all ferrous metal surfaces plated for durability.

Warranty Information

Limited Lifetime

Specifications

  • Additional Information
    PoE Friendly
  • Amp Draw
    300 mA @ 12 VDC, 150 mA @ 24 VDC
  • Application
    Size optimized for use with door closers
  • BAA Compliant
    Yes
  • Burglar Rated
    No
  • Country of Origin
    USA
  • Depth
    1-5/8"
  • Grade
    Grade 3
  • Hardware Finish
    Satin Stainless Steel 630/US32D
  • Height
    1-7/8"
  • Holding Force
    600 lb
  • Material
    Stainless Steel
  • Mounting Location
    Indoor/Outdoor
  • Operating Temperature
    -40-140 deg F (-40-60 deg C)
  • Power Transfer/Wires
    10 ft [3.05m] of jacketed, stranded conductor cable
  • Rated Opening Compliant
    Yes
  • Series
    M32 Series Electromagnetic Lockset
  • Standards
    UL10C Listed, CAN4-S104, CAN/ULC-S533 Listed, ANSI/UL294, CSA-C22.2 No.205 Listed, ANSI/BHMA A156.23, E08501-1000, CSFM
  • Strike Size
    6-1/4"W x 1-5/8"H x 1/2"D
  • Unit of Measure
    Each
  • Voltage Rating
    12/24 VDC
  • Weight
    6
  • Width
    8"
