Product Overview

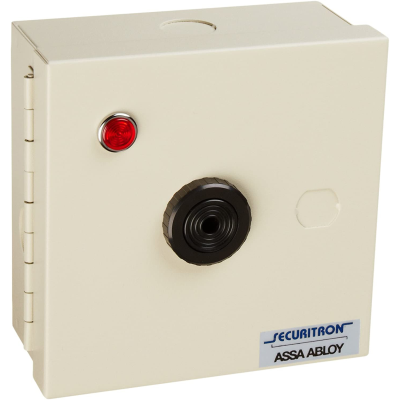

The Securitron DPA complements door position/door state detection with timed logic and relays that provide escalating alerts when a door is held, propped or unsecure after a defined time period. This unit promotes safety and loss prevention at ancillary exits for healthcare, commercial and retail facilities, and dorms. Multi-functional control timer provides relay action for alarms and alerts. Includes three 5 Amp SPDT outputs providing local and remote signaling. Digital time settings from 30 to 240 seconds. Detects attempts to tamper with lock or door status. Bypass mode for valid access/egress needs. Comes with Piezo sounder and LED.Warranty Information
Limited LifetimeSpecifications
-
- Action
- Multi-functional control timer provides relay action for alarms and alerts
-
- Alarm/Siren
- Piezo
-
- Amp Draw
- 100 mA a 12 VDC Max
-
- BAA Compliant
- Yes
-
- Burglar Rated
- No
-
- Color
- Gray
-
- Contact Type
- SPDT
-
- Country of Origin
- USA
-
- Delay
- Adjustable from 30 to 240 seconds
-
- Device Type
- Monitoring Station
-
- Fire Rated
- Non Rated
-
- Height
- 2.5"
-
- Includes
- (3) SPDT Outputs
-
- Length
- 5.25"
-
- Lights
- LED
-
- Material
- Aluminum and Steel
-
- Operating Temperature
- 32-120 deg F
-
- Power
- Hardwired
-
- Rated Opening Compliant
- No
-
- Relay
- 5 A SPDT
-
- Unit of Measure
- Each
-
- Weight
- 2.05
-
- Width
- 5.25"
