SDC IPDCE IPPro Controller Board with Enclosure

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

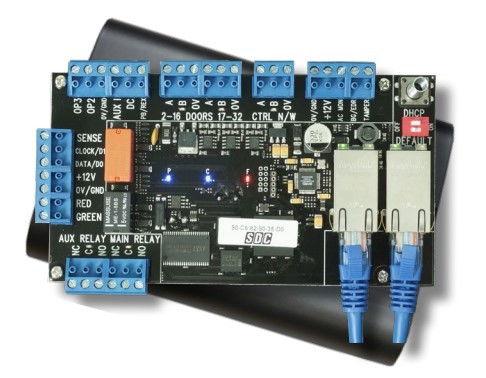

SDC IPDCE IPPro Controller Board with Enclosure

SKU:
SDC IDP
Part #:
Model:
SEC400IPDCE
$610.74 - $817.44

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

Bring safe, secure, easy to implement door access control to the Network’s edge without the headaches of costlier, more complicated enterprise solutions. SDC IPPro® IPD series IPbased single door access controllers come with two ethernet ports for interfacing with an additional IP device. They allow expansion from one standalone door up to a 100-door "grid." The additional ethernet port allows IT departments to save a port when connecting an extra door at the server. Installers can eliminate a long cable run when connecting an additional IP device. Every IPPro® controller comes with secure, built-in software to manage up to 32 doors from any standard web browser to allow for real-time monitoring, user management and audit trail up to 5,000 events. Or download our FREE PLUS PC-Client software to control up to 100 doors from a single PC. IPPro® PLUS is a role-based access control software suite with different interface modules.

Warranty Information

5 Years Limited

Specifications

  • Configuration/
    Connectors
    Ethernet: RJ45
  • Contact Rating
    5 Amp @ 30 VDC Resistive (Main - Lock); 1 Amp @ 30 VDC Resistive (Auxiliary)
  • Current Draw
    350 mA @ 12 VDC
  • Function
    Controls one door directly, with unlimited expansion capabilities
  • Includes
    Enclosure
  • Input Voltage
    12 VDC
  • Lights
    Visual status indicators (LED)
  • Number of Users
    60,000 users (up to 2 credentials/ user)
  • Operating Temperature
    14°F – 122°F (Indoor Use Only)
  • Ports
    Two ethernet
  • Programmer/
    Programming
    Programmable auxiliary input
  • Reader Technology
    Entry/exit wiegand reader capability
  • Relay
    Lock relay & auxiliary relay outputs
  • Size
    6” x 31/2” x 7/8” (Board); 91/4” x 61/2” 23/16” (Enclosure)
  • Unit of Measure
    Each
  • Weight
    1 lb
