Product Overview

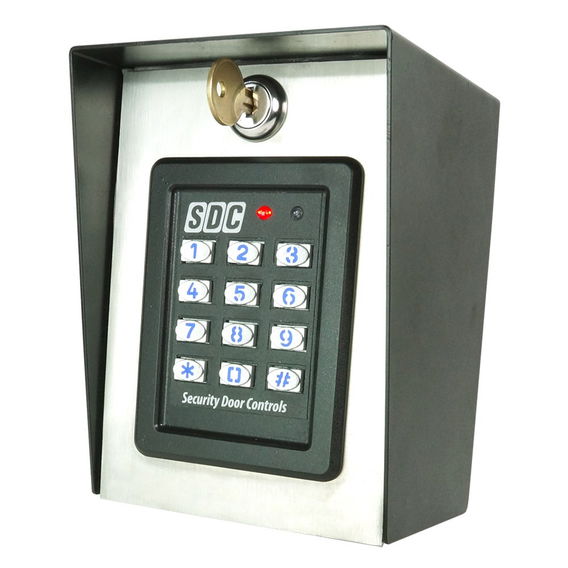

SDC's 926 series outdoor standalone digital keypads with incorporated privacy and weather protected housing are designed to control doors or gates with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid four to six digit code activates one or both of the output relays.
Warranty Information
5 Years Limited
Specifications
- Additional InformationAudible code entry verification
- Country of OriginUSA
- Current Rating30 mA Typical/150 mA Maximum
- Depth4-1/2"
- Device TypeOutdoor, Self-Contained
- FunctionControl access of a single entry point for facilities
- Height6-3/8"
- Keypad Type12-key illuminated, moisture-resistant keypad
- LightsVisual status indicators (LED)
- Mounting LocationSurface wall or pedastal post
- Number of Users500
- Operating Temperature-4F to +140F (-20C to +60C)
- Output CurrentRelay 1 - SPDT 5 Amps @ 28VDC, Relay 2 - SPDT 2 Amps @ 28VDC, Switch to Common Outputs 3,4 - 100mA @ 24VDC
- PowerHardwired
- Unit of MeasureEach
- Voltage Rating12/24 VAC/DC
- Weight3 lbs
- Width4-3/4"
