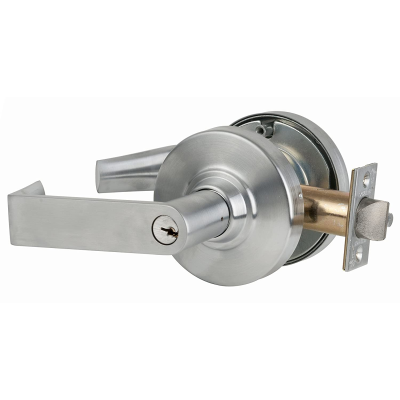

Schlage ND Series Cylindrical Lockset, Storeroom (F86) Function

SKU:SCH ND80

$552.18-$674.73
Reset Selections
Product Overview

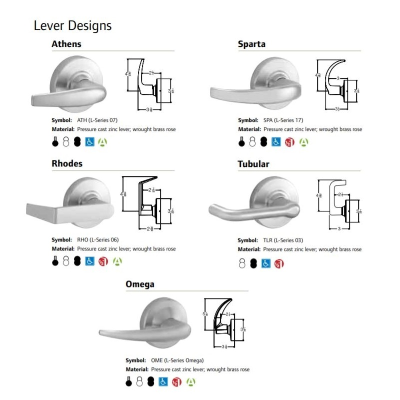

The Schlage ND-Series gets the job done with tough, dependable ANSI Grade 1 locks designed for use in schools, hospitals, offices, retail spaces, and colleges and universities. Built for heavy duty applications, ND-Series locks are easy to service and maintain and offer a wide range of styles and finishes to fit your project needs. All ND levers are reversible and ADA compliant. Exceeds ANSI A156.2, Series 4000 Grade 1 locked lever torque requirements. Tested to at least four times the 800,000-cycle ANSI Grade 1 requirement. Locked lever freely rotates up and down while remaining securely locked. Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) - without the use of set screws or O-rings. Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors. Cast steel spindle construction exceeding 16 million cycles. Withstood aggressive Schlage development testing including lever-snap and abusive cycling. 31 mechanical functions. Available in 10 finishes, 5 lever designs, and 2 rose designs. Multiple key systems available - open, patented, restricted, geographic exclusive, UL437. Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale. No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse), No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks), No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks). Often used in institutional, education, healthcare, office, retail.
Warranty Information

10 Years Limited

Specifications

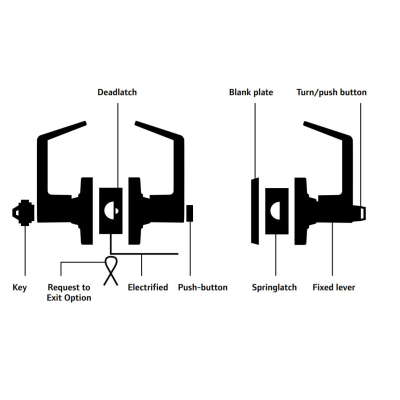

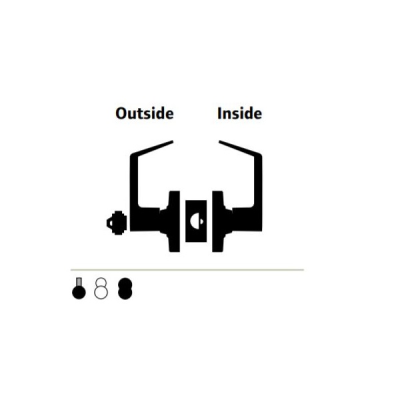

  • ActionOutside lever is fixed. Entrance by key only. Inside lever always unlocked.
  • ADA CompliantYes
  • Additional InformationVandlgard is Designed to Disengage Outside Spindle from Latch When Locked
  • ApplicationFor Exterior, Interior, New Construction, Retrofit Applications
  • BAA CompliantYes
  • Backset2-3/4" (70mm)
  • BoltSteel
  • Bolt Throw Length1/2" (13mm)
  • Country of OriginMexico
  • Device TypeHeavy Duty Traffic, Mechanical, With Deadlatch
  • Door Thickness1-5/8 to 2-1/8" (41 to 54 mm) Standard
  • Face ShapeSquare Corner, Beveled
  • Faceplate Size1-1/8" x 2-1/4" (29 mm x 57 mm)
  • Fire Rated180 Min
  • GradeGrade 1
  • HandNon-Handed
  • IncludesHardware
  • KeywayKeyed
  • Latch Number13-047
  • Latch TypeDeadlatch
  • Lock ChassisZinc Plated for Corrosion Resistance
  • Lock Face Size1-1/8" x 2-1/4"
  • Rated Opening CompliantYes
  • Rose/Escutcheon Size3-7/16"
  • SeriesSchlage ND Series Cylindrical Locks
  • StandardsANSI/BHMA A156.2-2003, Exceeds 800,000 ANSI Cycles, Meets FF-H-106C Series 161, MEA Certification
  • Strike1-3/16" (30 mm) Lip to Center
  • Strike Height4-7/8 (124mm)
  • Strike Number10-025
  • Strike TypeANSI Curved Lip Strike
  • Strike Width1-1/4" (32mm)
  • Unit of MeasureEach
  • Weight5
Videos
Video Thumbnail
Thumbnail-0

How to Install the Schlage ND Lock
