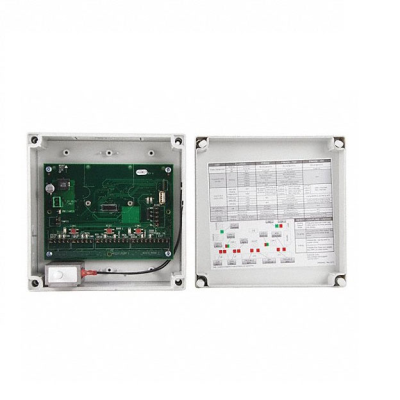

Schlage Electronics PIB300 Panel Interface Board, Supports 2 Doors

Product Overview

The Schlage Panel Interface Board (PIB300 or PIB301) provides a means of connecting RS485 based access point devices to a system requiring wiegand or clock and data protocol (rather than direct RS-485 connection). Provides two-way communication with locks via a RS-485 connection. The PIB300 may connect up to two Schlage AD-300 locks or up to two RS-485 based legacy locks communicating with the RSI or VIP protocol, may connect to an Access Control Panel (ACP) or reader interface board. The trouble signal output will change state when the Anti-Tamper Switch (ATS) signals that the PIB300/PIB301 enclosure lid is open, or if an access point device indicates trouble status. The PIB300/PIB301 should be located close to the access control panel (wiring distance may be up to 500 feet (152 meters)).
