Schlage Electronics NDEBSI ENGAGE Series Cylindrical Lockset

SKU:
SCHE NDEBSI
Part #:
Model:
SCENDEBSIBATH605
$1,051.20 - $1,251.36

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Reset Selections

Adding to cart… The item has been added
California Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Related Products

Product Overview

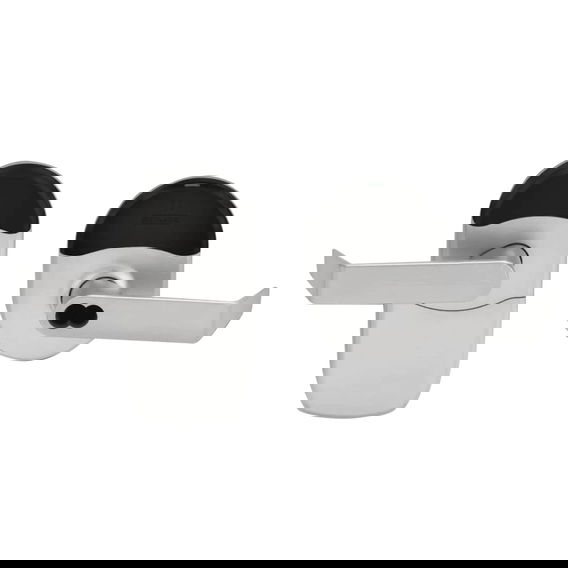

The Schlage® NDE mobile enabled wireless cylindrical lock is designed to affordably extend electronic access control deeper into the building beyond traditional perimeter and high security openings. It can function in offline or No-Tour mode or as a networked lock with either periodic check-ins or real-time management.

The NDE is compatible with a wide range of mobile, smart and proximity credential technologies and can operate in storeroom, office, privacy, or apartment functions using its interior push button with indication.

**Additional options may be available, inquire via Chat.**

Resources

Warranty Information

1 Year Limited

Specifications

  • Additional Information
    Built-in Wi-Fi® enables automated daily updates sent directly from host software
  • Application
    Interior/Exterior
  • Backset
    2-3/4" (70mm)
  • Battery
    4 AA Batteries
  • Bolt
    Steel
  • Bolt Throw Length
    1/2" (13mm)
  • Country of Origin
    Mexico
  • Door Thickness
    1-5/8" to 2" (41mm to 51mm)
  • Face Shape
    Square Corner
  • Faceplate Size
    1-1/8" x 2-1/4" (29 mm x 57 mm)
  • Function
    Selectable for Storeroom, Office, Privacy and Apartment
  • Grade
    Grade 1
  • Hand
    Field Reversible

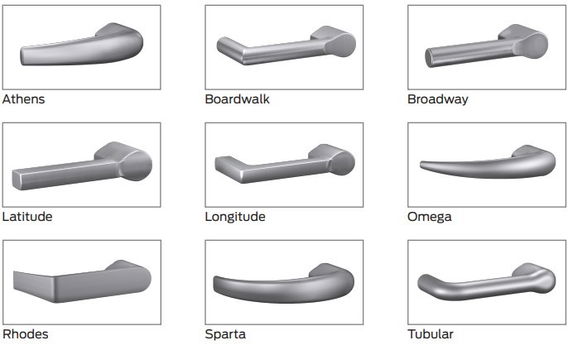

  • Handle Type
    Lever
  • Latch Number
    12-247
  • Latch Type
    Deadlatch
  • Lights
    LED (red, amber, green)
  • Lock Chassis
    Cylindrical
  • Number of Users
    5,000
  • Operating Temperature
    Exterior: -31° to 151°F (-35° to 66°C); Interior: 32° to 120°F (0° to 49°C)
  • Power
    Battery
  • Programmer/
    Programming
    Software Programmable
  • Rated Opening Compliant
    Yes
  • Reader Technology
    Si option; supports proximity (125 kHz), Bluetooth® (BLE, 2.4GHz), HID iCLASS®, iCLASS SE®, Seos® smart and NFC mobile
  • Rose/Escutcheon Size
    3.66"W x 4.94"H Exterior; 3.59"W x 7.2"H Interior
  • Series
    Schlage NDE Mobile Enabled Wireless Cylindrical Lock, Engage Series
  • Standards
    ANSI/BHMA A156.25 locked outdoor; ANSI/BHMA A156.2, Series 4000; UL 294; ULC 60839; UL 10C 3 hour; CSA C22.2 No. 205-M1983
  • Strike Height
    4-7/8 (124mm)
  • Strike Type
    ANSI Curved Lip Strike
  • Strike Width
    1-1/4" (32mm)
  • Unit of Measure
    Each
