Product Overview

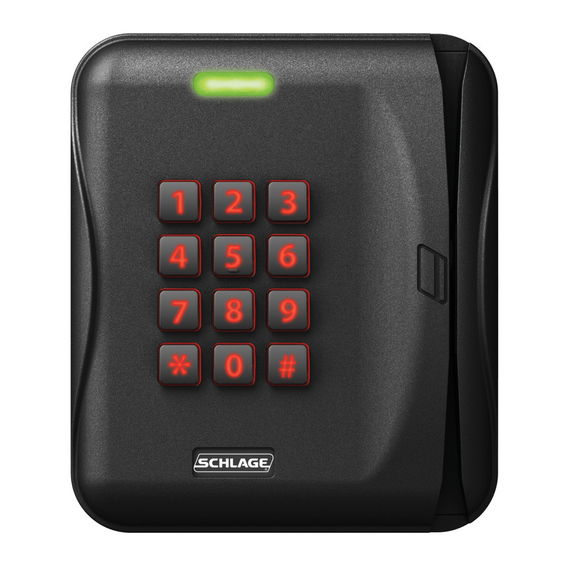

Schlage multi-technology readers are designed to simplify your access control solutions and allow a transition from existing population proximity or magnetic stripe to more secure encrypted card technology at your own pace without having to change readers as new technologies are available. Schlage multi-technology readers contain both 125 kHz proximity and 13.56 MHz contactless smart card capability in one-unit handling multiple formats simultaneously. Wiegand and RS-485 output available for simple interface with most access control panels. Compatible with NFC-enabled mobile devices. Accommodates interior, exterior, metal and non-metal installation environments. Quick-connect cable allows for easy installation. Easy-to-install mounting bracket.
Warranty Information
Limited Lifetime
Specifications
- ApplicationInterior, exterior, metal and non-metal installation environments
- ColorBlack
- CommunicationStandard, One-Way
- Current RatingAt 12VDC and 25C: Avg. 120 mA Peak 230 mA
- Depth1.15"
- Frequency13.56 MHz and 125 kHz and magnetic stripe
- FunctionAccess Control
- Height5.17"
- Keypad TypeStandard 10 Key
- MaterialPBT Polymer
- Operating Temperature-40 to 158 deg F (-40 to 70 deg C)
- PowerLinear DC
- RangeProximity: Up to 5"; MIFARE Classic: Up to 4"; MIFARE Plus: Up to 1"; MIFARE DESFire EV1 / EV2: Up to 2"; PIV credential: Up to 2.5"
- Reader TechnologyMulti-Technology, Magnetic Strip, Keypad
- StandardsSO 14443A, 14443B, 15693; FCC Certification; IC Certification; UL 294 Listed; RED Directive (15 EU Countries); CE Mark; IP65
- TypeMulti-Technology
- Unit of MeasureEach
- Use WithSchlage Electronics AD/CO Series Locksets
- Voltage5-16 VDC
- Weight9.5 oz
- Width4.43"
- Wire Required18 AWG, 5 conductor stranded/shielded
