Schlage Electronics CO-200 Series Exit Device Trim

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

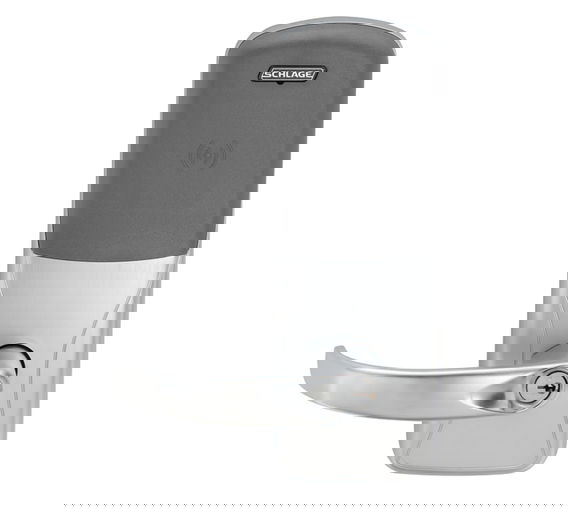

Schlage Electronics CO-200 Series Exit Device Trim

SKU:
SCHE CO200993
Part #:
Model:
LOC100CO200993M70KPRHO626PD
$1,545.12 - $1,967.04

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added
California Prop 65 Warning

Product Overview

The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-200 is computer or manually programmable with users rights stored on the lock. By issuing electronic credentials you can minimize the number of mechanical keys issued which protects the integrity of your key system. Mechanical key override is standard and compatible with multiple cylinder types. The CO Series is also compatible with many popular brands and types of exit devices. Computer programmable with audit trail. Up to 2000 users and up to 2000 audits. Up to 32 holidays and 16 time zones. LED indicator visually communicates lock status.

**Additional options may be available, inquire via Chat.**

Warranty Information

1 Year Limited

Specifications

  • Battery
    4 AA Batteries (Standard Off the Shelf: Included) Up to 2yr Battery Life
  • Cylinder
    SFIC Prep Less Core
  • Fire Rated
    Non Rated
  • Function
    Classroom/Storeroom
  • Grade
    Grade 1
  • Handle Type
    Lever
  • Keypad Type
    Standard 10-Key
  • Material
    Pressure Cast Zinc, Plated (lever)
  • Number of Users
    2000
  • Operating Temperature
    32-120 deg F (0-49 deg C) Interior / -31-151 deg F (-35-66 deg C) Exterior
  • Power
    Battery

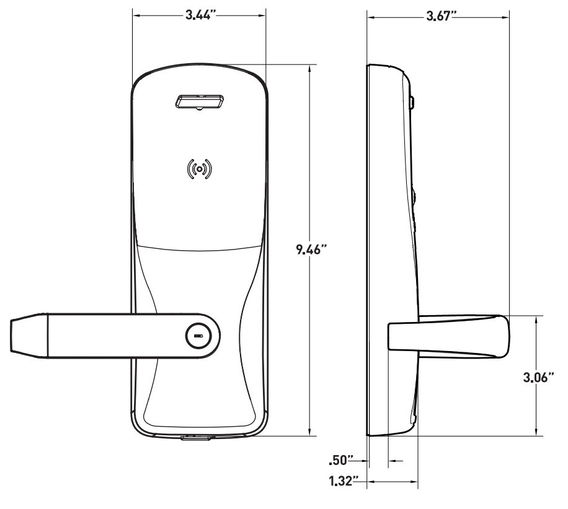

  • Projection
    3.06" Exterior; 2.96"Lever, 1.26" Interior
  • Rated Opening Compliant
    No
  • Series
    CO-200 Series Exit Trim
  • Size
    9.46x3.44" Exterior
  • Standards
    UL 294 Listed, ANSI/BHMA A156.25, ANSI/BHMA A156.3
  • Type
    Electronic Exit Device Trim
  • Unit of Measure
    Each
