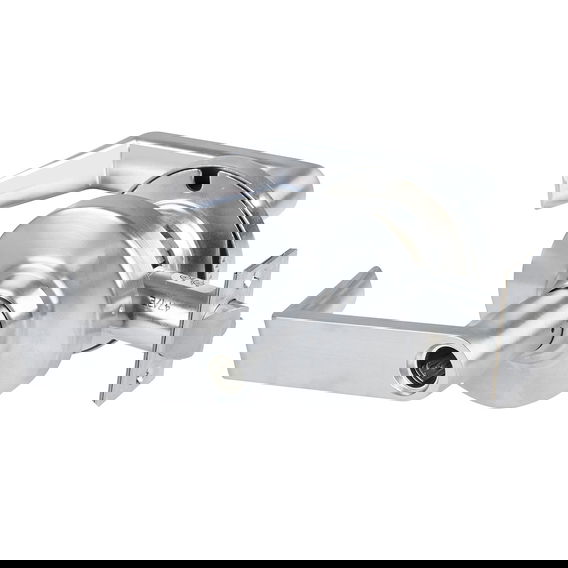

Schlage ALX Series Cylindrical Lock, Storeroom (F86) Function
- SKU:
- SCH ALX80
- Part #:
$165.00 - $298.80
Choose product options below to view Shipping Lead Time
(No reviews yet)
Write a Review
Write a Review
Schlage
Schlage ALX Series Cylindrical Lock, Storeroom (F86) Function
WARNING: This product can expose you to chemicals including Lead, which is known to the State
of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Product Overview
As a Grade 2 lock, the AL Series has always offered a combination of strength and durability alongside Schlage trusted key system options at a price point favorable to any application. Though these qualities remain, the lock has changed. ALX Series' features now deliver flexibility and value beyond strength and security. X Factor qualities, born from modular design, define a lock that exceeds expectations. AL Series' evolution to the ALX Series is a revolution in lock design. As a modular lock, it features a single, patent pending chassis design that supports most functions and all cylinder applications. The lock's ability to be configured on site to meet the functional need lets you avoid problems. You can do more with less, giving you an unprecedented level of flexibility to every aspect of how you use it in your business.
**Additional options may be available, inquire via Chat.**
Warranty Information
10 Years LimitedSpecifications
-
- ADA Compliant
- Yes
-
- Action

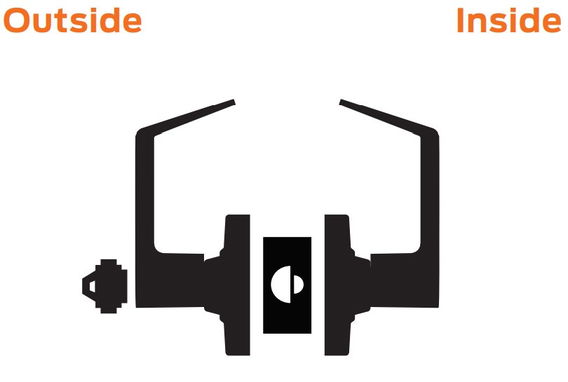

- Outside Lever is Fixed; Entrance by Key Only; Inside Lever Always Unlocked
-
- Application
- For Wood, Steel Doors - Exterior, Interior, New Construction, Retrofit Applications
-
- BAA Compliant
- Yes
-
- Backset
- 2-3/4" (70mm)
-
- Bolt
- Chrome Plated Brass
-
- Bolt Throw Length
- 1/2" (13mm)
-
- Country of Origin
- Mexico
-
- Device Type
- Medium Traffic, With Deadlatch
-
- Door Thickness
- 1-3/8 to 1-34" Standard
-
- Face Shape
- Square Corner, Beveled
-
- Faceplate Size
- 1-1/8" x 2-1/4" (29 mm x 57 mm)
-
- Function
- Storeroom
-
- Grade
- Grade 2
-
- Hand
- Non-Handed
-
- Includes
- Hardware
-
- Keyway
- Keyed
-
- Lock Chassis
- Steel, Zinc Dichromated for Corrosion Resistance
-
- Lock Face Size
- 1-1/8" x 2-1/4"
-
- Rated Opening Compliant
- Yes
-
- Rose/Escutcheon Size
- 3-7/16"
-
- Series
- Schlage ALX Series Cylindrical Locks
-
- Standards
- ANSI/BHMA A156.2-2011, Complies with ICC A117.1
-
- Strike
- 1-3/16 Lip Length
-
- Strike Height
- 4-7/8 (124mm)
-
- Strike Number
- 47267101
-
- Strike Type
- ANSI Curved Lip Strike
-
- Strike Width
- 1-1/4" (32mm)
-
- Unit of Measure
- Each
