Product Overview

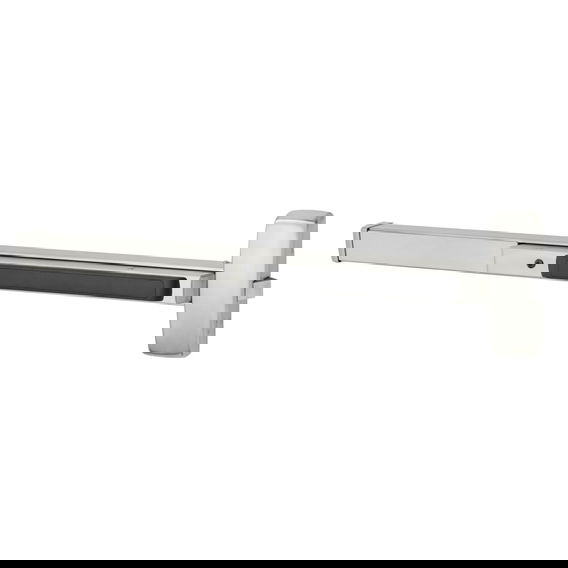

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
**Additional options may be available, inquire via Chat.**
Warranty Information
5 Years Limited
Specifications
- ActionNo outside operation (No Cylinder); ET Control (where included) is used as Pull Only
- ApplicationFor Schools, Offices and Hospitals
- BAA CompliantYes
- BoltStainless Steel Latchbolt
- Bolt Throw Length3/4" (19m)
- Country of OriginUSA
- Device TypeRim
- Door MaterialMetal
- Door Thickness1-3/4"
- Duty Weight/ClassHeavy Duty
- Function10 Exit Only, ANSI 01/02
- GradeGrade 1
- MaterialStainless steel chassis cover, nonferrous alloy chassis, roll formed stainless steel rails
- Metric SizeCenter Case: 213mm x 67mm
- Mounting StyleSurface
- Projection3" (76mm) Pushbar Neutral; 2-1/8" (54mm) Pushbar Depressed
- ScrewsWood and Machine Screws
- SeriesSargent 80 Series Exit Device
- SizeCenter Case: 8-3/8" x 2-5/8"
- StandardsANSI/BHMA 156.3, 2008
- Stiles4-1/2" (114 mm)
- Strike Height3-11/16"
- Strike Number649
- Strike Width1-5/32"
- TypeWide Stile Pushpad
- Unit of MeasureEach
- Weight15
