Sargent 8200 Series Heavy Duty Mortise Lockset, Privacy Bath/Bedroom (8265) Function with Indicator
Sargent 8200 Series Heavy Duty Mortise Lockset, Privacy Bath/Bedroom (8265) Function with Indicator

Let us build your organization a custom and personalized buyer portal.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Sargent 8200 Series Heavy Duty Mortise Lockset, Privacy Bath/Bedroom (8265) Function with Indicator

SKU:
SAR 8265 IND
Part #:
Model:
SARV018265LNJ26D
$888.23 - $1,085.39

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Reset Selections

Adding to cart… The item has been added
California Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Related Products

Product Overview

The 8200 series mortise lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable-far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing-for additional resistance against vandalism and unauthorized entry. Patented design and construction. Available in 60 different functions, including electromechanical, security and monitoring. UL-cUL listed for three hour fire doors and windstorm applications. Pre-assembled components make installation fool-proof.

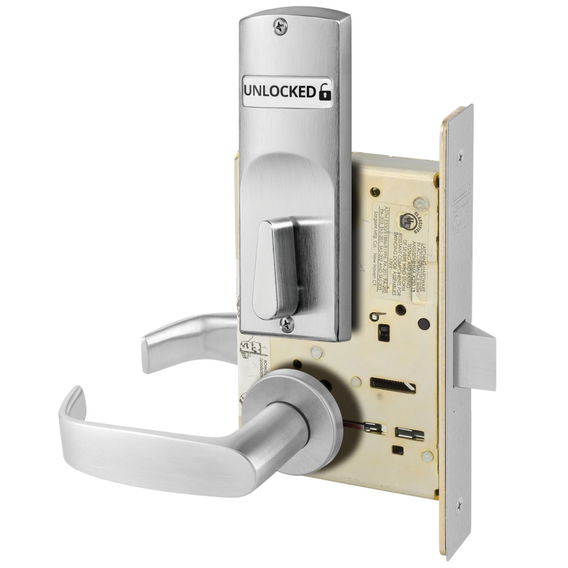

8200 Series indicators can be used in a variety of applications and are most commonly used to identify occupancy or display the locked/unlocked status of a room. Viewing window 25% larger than competition. Patented curved design for viewing at multiple angles. Window located prominently above the cylinder. Highly reflective viewing window for increased safety. Retrofitable for existing applications.

Resources

Warranty Information

10 Years Limited

Specifications

  • ADA Compliant
    Yes
  • Action
    Trim outside retracts latchbolt except when locked by thumbturn. Trim inside retracts latchbolt and unlocks outside trim. Thumbturn locks and unlocks trim outside. Closing the door will unlock outside trim.
  • Additional Information
    Emergency Release locks/unlocks trim outside-by coin, screwdriver or Emergency key (14-0057) ordered separately
  • BAA Compliant
    Yes
  • Backset
    2-3/4" (70mm)
  • Bolt
    Stainless Steel Latchbolt
  • Bolt Throw Length
    3/4" (19mm)
  • Country of Origin
    USA
  • Depth
    4-3/32" Case
  • Door Thickness
    1-3/4"
  • Duty Weight/Class
    Heavy Duty
  • Faceplate Height
    8" (203mm)
  • Faceplate Width
    1-1/4" (31mm)
  • Fire Rated
    180 Min

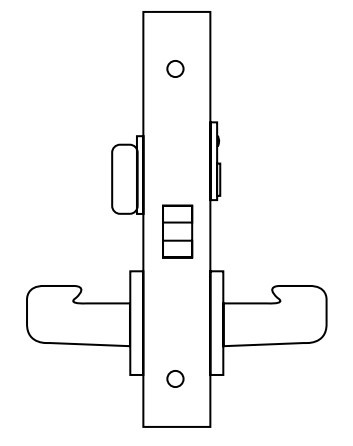

  • Function
    Privacy Bath/Bedroom (ANSI F22)
  • Grade
    Grade 1
  • Hand
    Field Reversible
  • Handle Type
    Lever
  • Height
    5-31/32' Case
  • Includes
    Hardware, single side indicator plate, plastic template and instructions
  • Keyway
    Non-Keyed
  • Lock Prep
    Mortise
  • Material
    Case: 12 gauge heavy duty wrought steel, zinc dichromate plated, 1/8" (.125") cold-rolled steel inside front, wrought steel hubs and high carbon steel spring cartridge
  • Rated Opening Compliant
    Yes
  • Series
    Sargent 8200 Series Mortise Locksets
  • Standards
    ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1
  • Stiles
    '4-1/2" (114 mm) Minimum
  • Strike
    4-7/8" Curved Lip, #82-0110
  • Strike Standard
    ANSI
  • Through Bolts
    Yes
  • Unit of Measure
    Each
  • Weight
    6.1
  • Width
    24/32" Case
