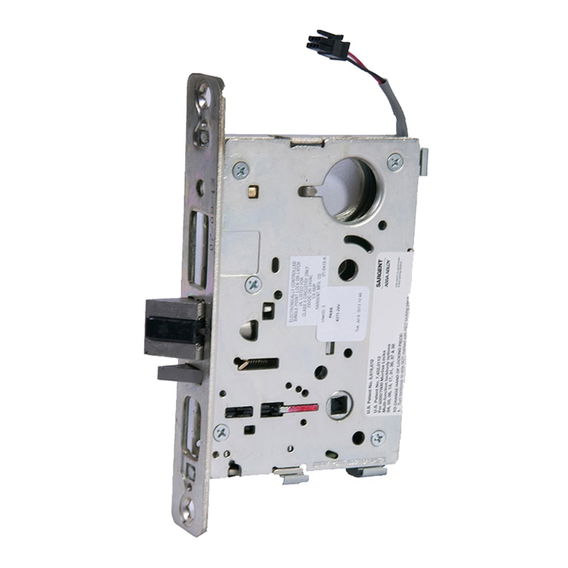

Sargent 8200 Series Heavy Duty Mortise Lockset, Electromechanical, 70/71 Function, Lockbody Only
Sargent 8200 Series Heavy Duty Mortise Lockset, Electromechanical, 70/71 Function, Lockbody Only

Let us build your organization a custom and personalized buyer portal.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Sargent 8200 Series Heavy Duty Mortise Lockset, Electromechanical, 70/71 Function, Lockbody Only

SKU:
SAR LB-8270/71
Part #:
Model:
SAR100827012V10
$566.78 - $1,326.81

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Reset Selections

Adding to cart… The item has been added
California Prop 65 Warning
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Related Products

Product Overview

The 8200 series mortise lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable-far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing-for additional resistance against vandalism and unauthorized entry. Patented design and construction. Available in 60 different functions, including electromechanical, security and monitoring. UL-cUL listed for three hour fire doors and windstorm applications. Pre-assembled components make installation fool-proof. The electromechanical version of the 8200 Series Mortise Lock operates from 12 to 24VDC and can be used in stand-alone applications or as part of an integrated access control system. Featuring EcoFlex technology, the electromechanical version dramatically reduces power consumption by up to 96 percent, as certified by GreenCircle. **Additional options may be available, inquire via Chat.**

Resources

Warranty Information

2 Years Limited

Specifications

  • ADA Compliant
    Yes
  • Action
    Power ON, locks/unlocks outside lever. Key outside retracts latchbolt. Lever outside retracts latchbolt, except when locked. Lever outside can only be locked electronically. Lever inside always retracts latchbolt.
  • Additional Information
    Auxiliary deadlatch
  • Amp Draw
    0.015 Amp continuous
  • BAA Compliant
    Yes
  • Backset
    2-3/4" (70mm)
  • Country of Origin
    USA
  • Depth
    4-3/32" Case
  • Door Thickness
    1-3/4"
  • Duty Weight/Class
    Heavy Duty
  • Faceplate Height
    8" (203mm)
  • Faceplate Width
    1-1/4" (31mm)
  • Fire Rated
    180 Min
  • Grade
    Grade 1
  • Height
    5-31/32' Case
  • Includes
    Hardware
  • Keyway
    none - lockbody only
  • Lever/Knob Design
    none - lockbody only
  • Lock Prep
    Mortise
  • Material
    Case: 12 gauge heavy duty wrought steel, zinc dichromate plated, 1/8" (.125") cold-rolled steel inside front, wrought steel hubs and high carbon steel spring cartridge
  • Operating Temperature
    Maximum 151 deg F (66 deg C), Minimum -31 deg F (-35 deg C)
  • Operating Voltage
    12VDC/24VDC
  • Power
    Hard Wired
  • Power Transfer/Wires
    Modular wire harness with ElectroLynx 8-pin connector
  • Rated Opening Compliant
    Yes
  • Rose/Escutcheon Design
    none - lockbody only
  • Series
    Sargent 8200 Series Mortise Locksets
  • Standards
    ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1
  • Stiles
    4-3/4" (121 mm) Minimum
  • Strike
    none - lockbody only
  • Strike Standard
    ANSI
  • Type
    Electromechanical Fail Safe
  • Unit of Measure
    Each
  • Use With
    McKinney QC8 ElectroLynx hinges are recommended for Electrified 10 Line Applications
  • Weight
    6.1
  • Width
    24/32" Case
