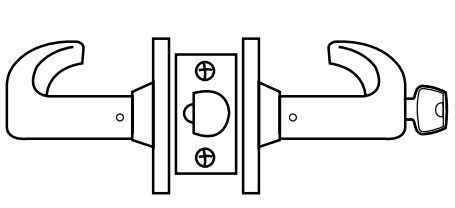

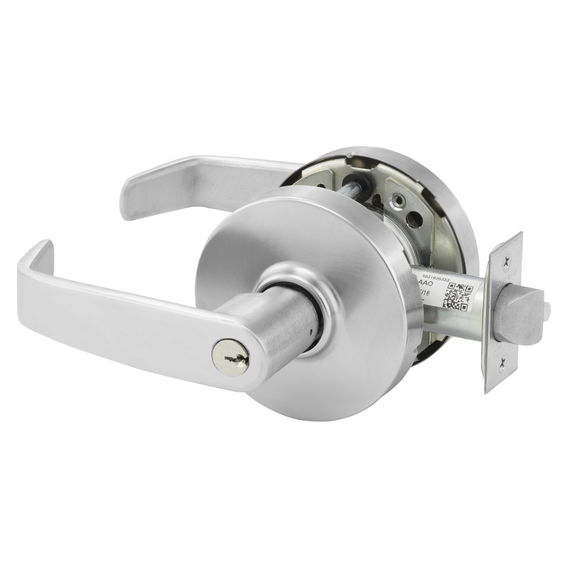

Sargent 10X Line Heavy Duty Cylindrical Lever Lock, Classroom (37) Function
SKU:SAR 10XG37
$497.32-$670.32
Reset Selections
- Chat With An Expert
- Resources & Tools
- Return Policy
- Request Volume Pricing
Product Overview
The SARGENT 10X Line is engineered to secure and protect high-traffic, high-abuse spaces. It doesn’t simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants enjoy consistent performance for the life of the product. **Additional options may be available, inquire via Chat.**
Warranty Information
10 Years Limited
Specifications
- ActionLatch by Either Lever Unless Outside Lever is Locked by Key; Key in Outside Lever Locks or Unlocks Outside Lever and Retracts Latch; Inside Lever Always Operative
- ADA CompliantYes
- ApplicationHeavy duty commercial and institutional interior and exterior doors
- BAA CompliantYes
- Backset2-3/4" (70mm)
- BoltStainless Steel Latch
- Bolt Throw Length1/2" (13mm)
- Country of OriginUSA
- Door Thickness1-3/4 - 2"
- DoorsInterior/Exterior
- Duty Weight/ClassHeavy Duty
- Function37 Classroom (ANSI/BHMA F84)
- GradeGrade 1
- HandNon-Handed
- Handle TypeLever
- IncludesHardware
- Latch Number10-2000
- Latch TypeDeadlatch
- Lock Face Size2-1/4" (57mm) x 1-1/8" (29mm) Fixed Bevel
- Lock Prep161
- MaterialZinc Dichromate Finish Steel Cylindrical Housing
- Projection2-1/2" Lever
- Rated Opening CompliantYes
- Rose/Escutcheon Size3-1/2" Dia.
- ScrewsWood/Machine
- SeriesSargent 10X Line Series Cylindrical Lever Locksets
- StandardsANSI A156.2 (2017), A156.41, Series 4000, UL Listed
- Stiles4-1/2" (114 mm)
- Strike4-7/8"x1-1/4" Curved Lip, #808
- Strike StandardANSI
- Through BoltsYes
- TypeCylindrical, Lever Lock
- Unit of MeasureEach
- Weight4
