Product Overview

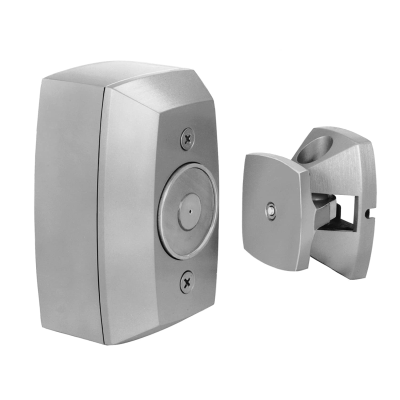

Electromagnetic door holder/releases are designed for virtually any remote door release applications. They must be used in conjunction with closing devices. For fire/smoke barrier doors the door releases when tripped by an alarm or smoke detector. On private offices, door releases when triggered by a remote switch. Fail-safe operation, power failure releases door. Wall must be properly reinforced.
Resources
Warranty Information
2 Years Limited
Specifications
- Armature Size2-17/32" (64mm) H x 1-5/8" (41mm) D
- DoorsSingle
- Holding Force25 to 40 pounds
- Metric Size70mmW x 84mmD x 117H (Base)
- Mounting LocationWall
- Mounting StyleRequires 1-1/2" (38mm) deep adapter housing
- Projection4-1/8" Total, Wall to Door
- Size2-3/4"W x 2-1/2"D x 4-5/8"H (Base)
- StandardsCompliant with ANSI/C00011/BHMA A156.15
- TypeElectromagnetic
- Unit of MeasureEach
- Voltage12VDC, 24VAC/VDC, 120VAC
- Volts/Amps0.02 A/0.04 A
- Weight3
- Wire RequiredSurface Wiring
