Product Overview

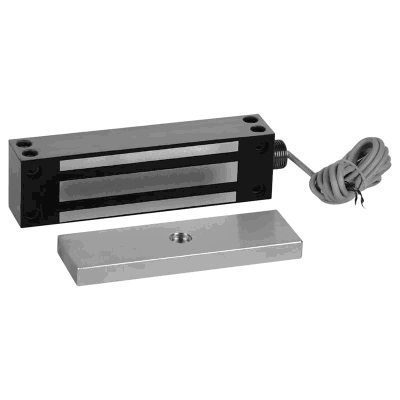

The 8380 GateMag is weather resistant with a rugged, stainless steel housing. Making it an excellent solution for interior and exterior perimeter gates. The GateMag electromagnetic lock features a built-in conduit fitting and an extra-long wire cable for easy wiring to an electrical box. Remote monitoring access is easy with the RCI 8380 GateMag. It includes a built-in Remote Lock Status (RLS) that indicates whether the magnet is locked or unlocked. Designed to overcome residual magnetism. Versatile face or bottom through-bolt mounting.
Warranty Information
Limited Lifetime
Specifications
- ApplicationFor Exterior or Interior Gates, Sliding Gates, Swinging Gates, Tool Cages, Fences, Storage Areas
- Armature Size7-7/16"W x 2-3/8"H x 5/8"D
- Failure ModeFail Safe
- Fire Rated90 Min
- HandNon-Handed
- Hardware FinishSatin Stainless Steel 630/US32D
- Holding Force1200 lbs.
- MagnetYes
- MaterialStainless Steel
- Metric Size225mm x 63mm x 45mm
- Mounting StyleSurface
- Operating Voltage12/24 VDC
- PowerHardwire
- Rated Opening CompliantYes
- Size8-7/8"W x 2-1/2"H x 1-3/4"D
- StandardsUL Listed, CAN/ULC S104 UL 10C
- Switch TypeRLS (Remote Lock Status)
- Through BoltsYes
- Unit of MeasureEach
- Volts/Amps480mA Field Selectable 12/24VDC
