Product Overview

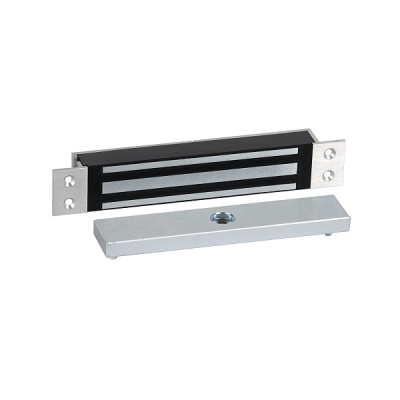

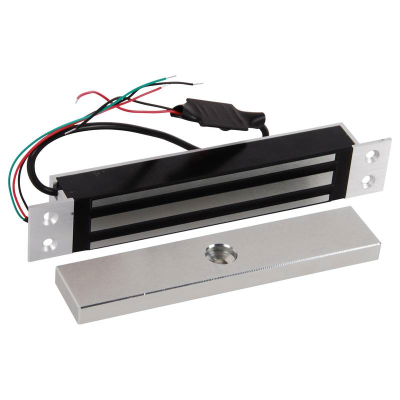

The 8360 Mortise MiniMag is an ideal solution for a secure hold on sliding doors. This electromagnetic lock is low-profile. The brushed anodized aluminum finish blends with the sliding door aesthetic. The RCI 8360 Mortise MiniMag can be monitored remotely with built-in lock status sensors and is backed by a lifetime limited warranty.Warranty Information
Limited LifetimeSpecifications
-
- Application
- For Perimeter and Interior Sliding Doors, Small Enclosures, Cash Drawers, Vending Machines, Filing Cabinets, Access Cover Hatches, Industrial, Commercial, Residential, Health Care
-
- Armature Size
- 7-1/4"W x 1-1/2"H x 1/2"D
-
- Doors
- Single, Interior/Exterior, Sliding
-
- Failure Mode
- Fail Safe
-
- Hand
- Non-Handed
-
- Hardware Finish
- Aluminum Painted 689/US28
-
- Holding Force
- 750 lbs.
-
- Includes
- 3/4" (19mm) mounting tabs
-
- Magnet
- Yes
-
- Metric Size
- 229mm x 38mm x 27mm
-
- Mounting Style
- Mortise
-
- Operating Voltage
- 12/24 VDC
-
- Power
- Hardwire
-
- Size
- 9"W x 1-1/2"H x 1-1/6"D
-
- Switch Type
- RLS (Remote Lock Status)
-
- Unit of Measure
- Each
-
- Volts/Amps
- 500mA Field Selectable 12/24VDC
