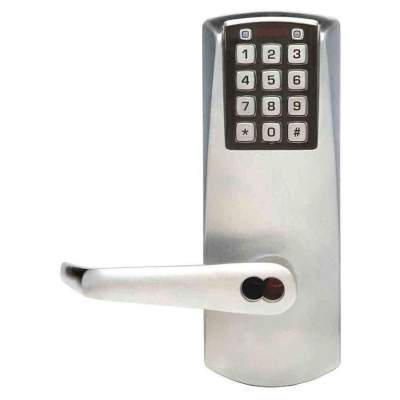

Learn MorePowerPlex P201 Electronic Exit Device Trim, 100 Access Codes, 1,000 Audit Events
SKU:PP P201
$985.00
$764.61
Reset Selections
- Chat With An Expert
- Resources & Tools
- Return Policy
- Request Volume Pricing
Product Overview
Based on the PowerStar Technology, which has been used and manufactured for over 10 years, the PowerPlex Series utilizes new capacitor technology to store power longer and more efficiently. There is no handle pumping required to wake up the lock and the built-in super capacitors will hold a full charge for up to 10 weeks with no activity at the lock. The lock is perfect for small to mid-sized facilities, rarely visited remote locations, retail "Employees Only" areas and military facilities, just to name a few. Electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by PIN code, while allowing free egress. PowerPlex 2000 locks are self-powered electronic locks that do not require batteries or other power sources. The lock generates its own power with every turn of the lever, making it the most efficient and versatile electronic lockset available with virtually no maintenance costs.
Warranty Information
3 Years Limited
Specifications
- ADA CompliantYes
- ApplicationIndoor or Outdoor
- Device TypeMechanical, Combination Entry, Exit Trim
- Door MaterialWood or Metal
- Door Thickness1-3/4 In. - 2-1/4 In.
- FunctionExit Device Trim-Rim, Mortise, Surface Vertical Rod
- GradeGrade 1
- HandNon-Handed
- Handle TypeLong Lever
- IncludesLock assembly, installation manual, template, quick reference guide, operations manual, and required hardware. Exit Device and mounting hardware not included.
- Keypad Type12 Button Vandal Resistant
- LightsGreen and Red LED Indicator Lights
- Operating Temperature-31 to 151 degrees F (-35 to 66 degrees C)
- Programmer/ProgrammingLock is easily programmed via keypad without removing lock from the door
- Projection3-13/16" (exterior)
- Rated Opening CompliantYes
- SeriesPowerPlex 2000 Mechanical Lock

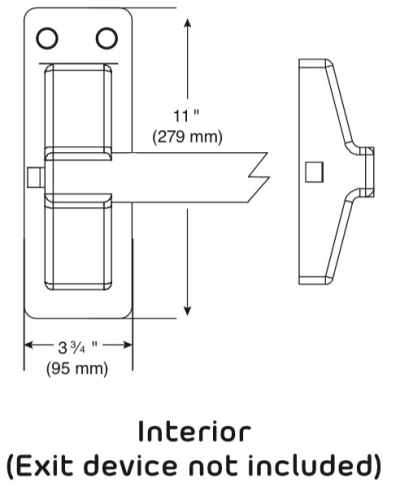

- Size3-5/16"W x 8-15/16"H (exterior), 3-3/4"W x 11"H (interior)
- StandardsANSI/BHMA (A156.25, A156.2, A156.13, A156.3)
- Stiles5" Minimum Recommended
- Unit of MeasureEach
- Use WithExit Device, Sold Separately (See details attached for specified models)
