Pemko 420 Automatic Door Bottom

Let us build your organization a custom and personalized eStore.

Learn More

Standardize materials and improve the purchasing process for your facilities.

Pemko 420 Automatic Door Bottom

SKU:
PEM 420
Part #:
Model:
086686
$50.38 - $63.89

Choose product options below to view Shipping Lead Time

(No reviews yet) Write a Review
Adding to cart… The item has been added

Product Overview

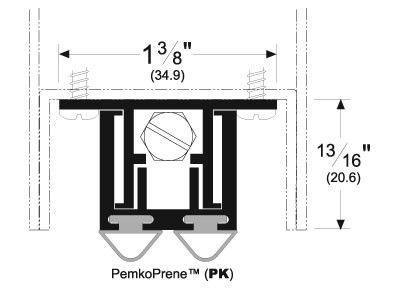

Pemko automatic door bottoms consist of an aluminum case which surrounds a movable drop-bar seal. The drop-bar seal is actuated by a plunger which contacts the jamb as the door is closing, forcing the drop-bar seal down against the floor or threshold. Provides an excellent seal to keep out draft, dust, moisture, insects, fumes, light and sound. Automatic door bottoms seal up to a 3/4" gap under the door. Surface and semi-mortise application, non-handed. Can be mounted to either wood or hollow metal doors.

Warranty Information

5 Years Limited

Specifications

  • Device Type
    Maximum drop is 1/2"
  • Door Material
    Hollow Metal
  • Fasteners
    Sheet Metal Screws
  • Function
    For sealing a door to the threshold or floor surface
  • Hardware Finish
    Mill Finish Aluminum
  • Height
    13/16in.
  • Insert
    Black PemkoPrene
  • Material
    6063-T6 Aluminum Alloy and Temper Retainer
  • Rated Opening Compliant
    Yes
  • Series
    Pemko Automatic Door Bottom
  • Standards
    BHMA Certified, ASTM E 90, UL 1784, UL10C, UL 4L10, GREENGUARD Gold
  • Unit of Measure
    Each
  • Width
    1-3/8in.
